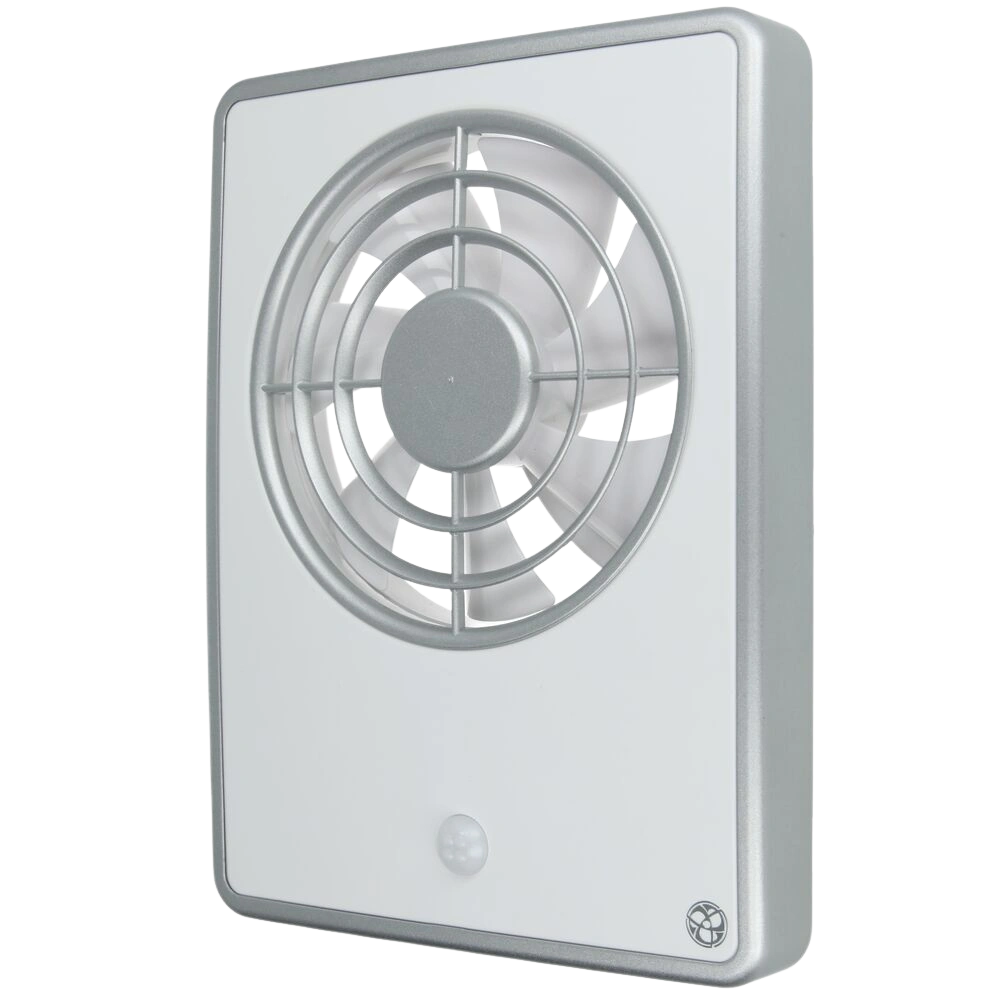

The domestic fan Smart IR by Blauberg with integrated motion sensor and remote control is a smart exhaust fan in stylish design for bathrooms, shower rooms and kitchens...
All product information Scope of deliveryRelated products
Motion sensor
Humidity sensor
Timer
CE
GS-certified
The domestic fan Smart IR by Blauberg with integrated motion sensor and remote control is a smart exhaust fan in stylish design for bathrooms, shower rooms and kitchens. It is provided with replaceable connecting pieces for the connection to air ducts with diameters of 100 and 125 mm. The Smart IR fan with triggering sensor is additionally equipped with a timer functions, interval ventilation and an intelligent humidity sensor responsible for automatic control of the natural indoor climate. Moreover, this product has a 24-hour mode. The fan runs 24 hours at low speed to ensure minimum air exchange in the room. You can select 10 ventilation levels each for Quiet mode and Maximal. All settings can be made on the device as well as via remote control.
| Scope of delivery: | |||
| 1 x | remote control | ||
| 1 x | backdraft damper 100 mm | ||
| 1 x | backdraft damper 125 mm | ||
| 1 x | Screws and wall plugs | ||
For more information see Downloads
| OEG no. | 745000316 |
| Model: | Humidity sensor, Motion sensor |
| Mounting type: | Wall mounting, Ceiling mounting |
| Output [W]: | 3.8 |
| Voltage [V]: | 230 |
| Pipe diameter [mm]: | 100, 125 |
| Protection type [IP]: | 44 |
| Length x Width x Height [mm]: | 209 x 155.5 x 28 |
| Ambient temperature [°C]: | 1 .. 45 |
| Delivery rate [m³/h]: | 133 |
| Speed max. [1/min]: | 2,200 |
| Sound pressure level [dB]: | 32 |
| Type: | Smart |
| Manufacturer | Blauberg |
| Manufacturer number | 8011528 |
| EAN | 4058448011528 |
| Weight [kg] | 0.86 |
| Notes |
Motion sensor
Humidity sensor
Timer
CE
GS-certified
|
| Customs tariff number | 84145995 |
welch Farben ist es verfügbar
In unserem Sortiment haben wir die Standardfarbe Grau, diese ist sofort lieferbar.
BONJOUR! POUVEZ VOUS ME FOURNIR LA DOCUMENTATION EN FRANCAIS???? MERCI
Bonjour,
La notice est disponible en français.
Cliquez sur "Downloads"
Bonjour,
Vous pouvez télécharger la documentation dans la rubrique "DOWNLOADS".
