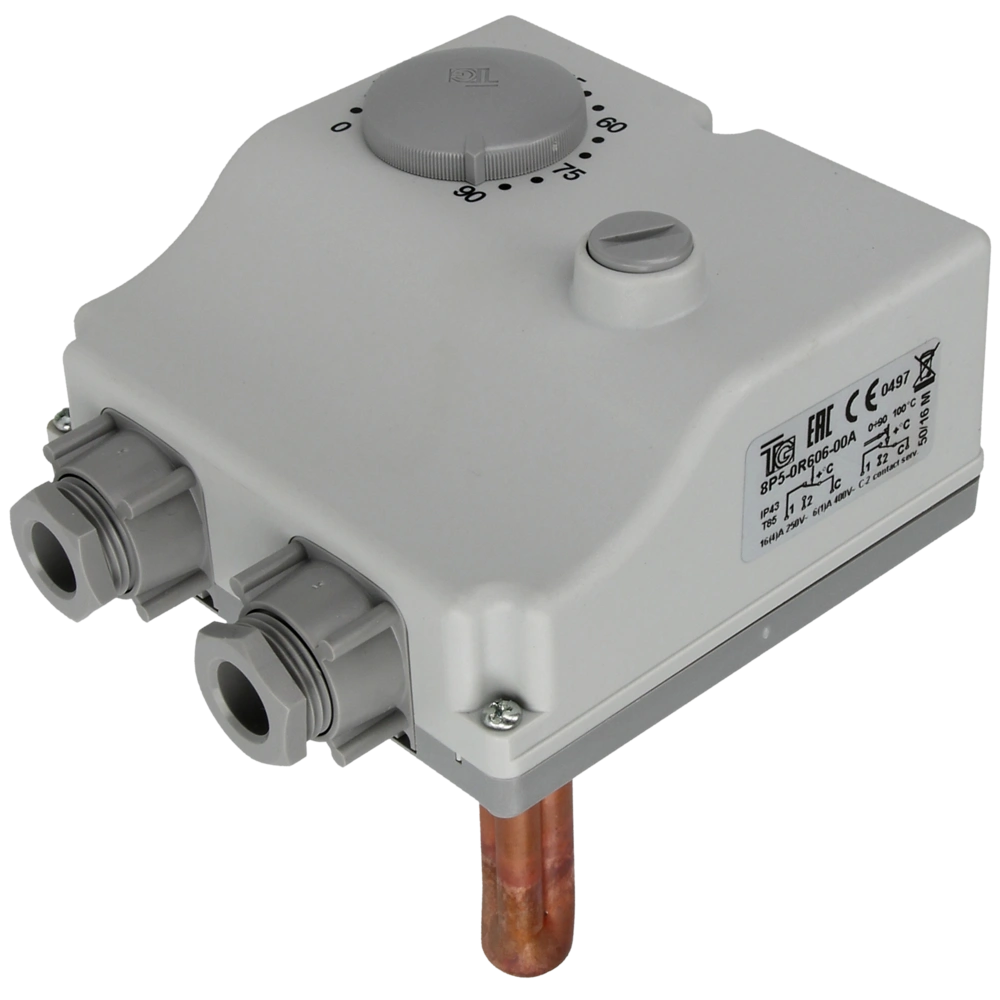

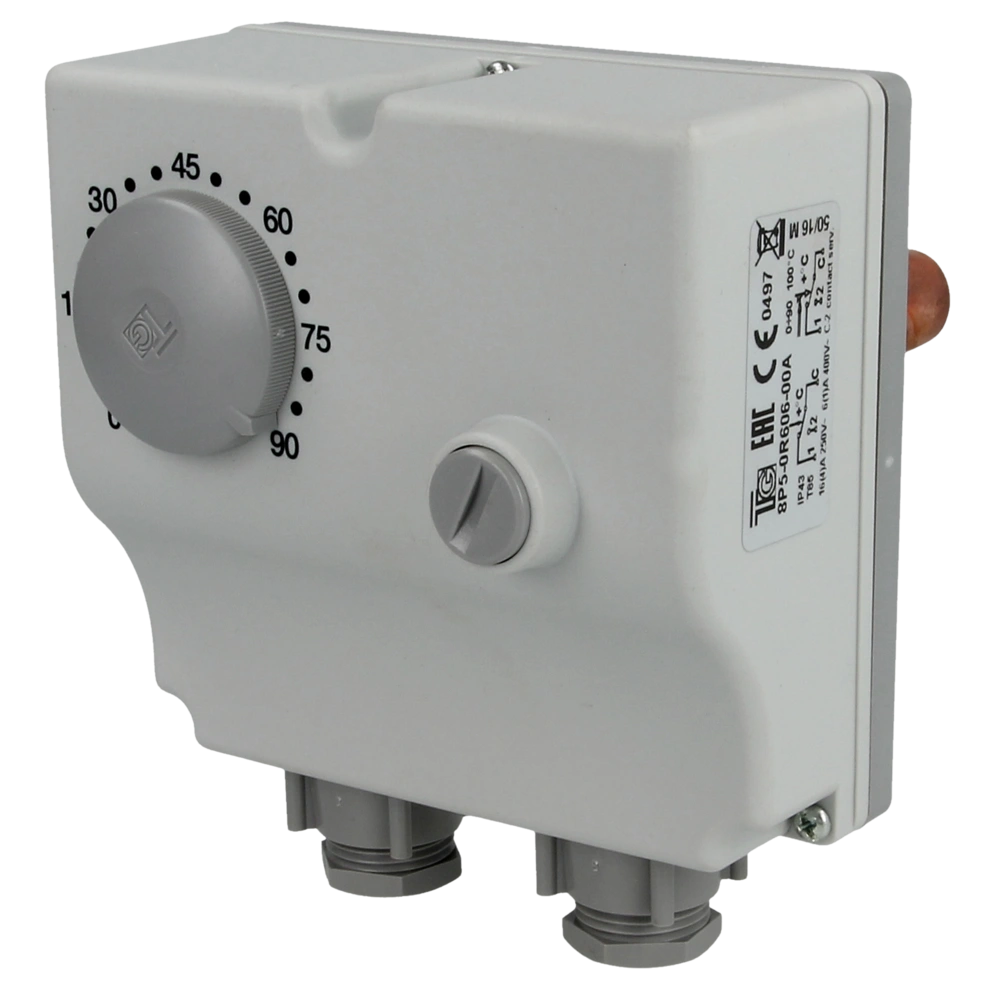

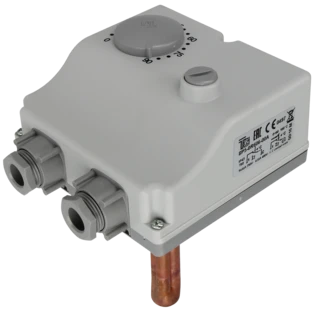

Double immersion thermostat with temperature limiter
The immersion thermostat controls and monitors thermal processes in heat transfer units, in apparatus and mechanical engineering, in furnace construction or also in heating and air conditioning technology...
All product information
CE
IP43
The immersion thermostat controls and monitors thermal processes in heat transfer units, in apparatus and mechanical engineering, in furnace construction or also in heating and air conditioning technology. It works according to the liquid expansion principle.
The microswitch serves as an electrical switching element. If the temperature at the probe exceeds the set limit, the microswitch is actuated via the transmission mechanism, and the current circuit is opened or closed.
For more information see Downloads
| OEG no. | 211208030 |
| Control temperature [°C]: | 0 .. 90 |
| Safety temperature [°C]: | 100 |
| Connection size [inch]: | 1/2 |
| Sensor diameter [mm]: | 16 |
| Sensor type: | Cu |
| Voltage [V]: | 250, 400 |
| Switching capacity [A]: | 16, 6 |
| Measurement error: | ± 6 °C | ± 4 °C |
| Switch contact: | Changeover |
| Protection type [IP]: |
IP43
|
| Weight [kg] | 0.31 |
| Notes |
CE
IP43
|
| Customs tariff number | 90321020 (IT) |
wie lang ist das Schutzrohr, bei welcher Temperatur lößt der Begrenzer aus?
Das Schutzrohr hat eine Länge von 100mm.
Die Regeltemperatur liegt im Bereich von 0 .. 90°C und es gibt eine Begrenzung des Regelbereichs bei 100°C.
le doig de gant et fourni avec
le doigt de gant est fourni avec
