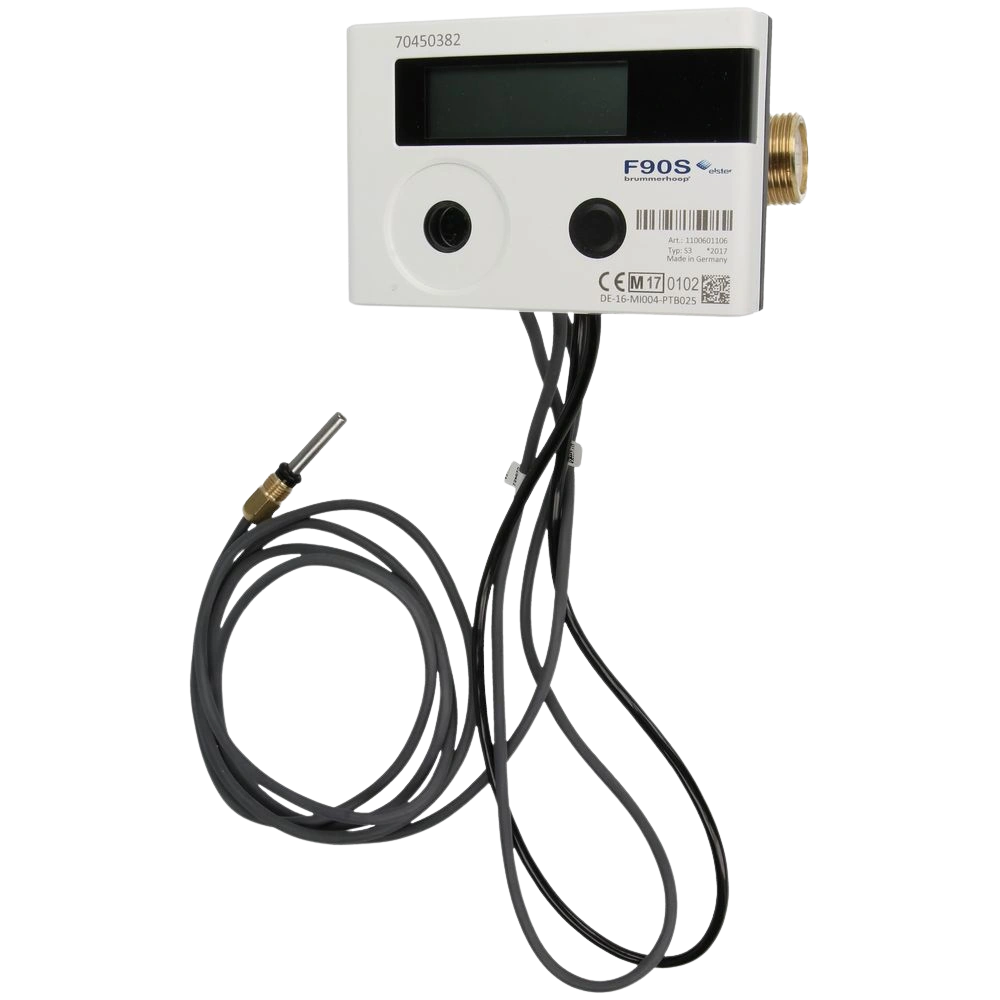

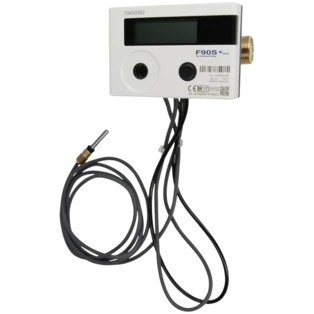

Elster compact heat meter F90S3 M-Bus Qp 2.5 1" ET
OEG no.: 512242882
The Elster heat meter F90S3 is a compact, fully electronic single-jet heat meter for recording energy and volume data. It is equipped with an LC display.
The following date can be read off: units...
Related products
CE
The Elster heat meter F90S3 is a compact, fully electronic single-jet heat meter for recording energy and volume data. It is equipped with an LC display.
The following date can be read off: units MWh, kW, m³, m³/h, energy consumption and volume, key date values, performance, flow rate, temperatures, max. values, error messages, operating days, M-bus address and serial number. The detachable calculator unit is equipped with a 30 cm long cable. The temperature sensor has a diameter of 5.2 mm. The integrated battery has a life of 6 years.
Note:
Including calibration fee!
Calibration time: 5 years
| Scope of delivery: | |||
| 1 x | compact heat meter | ||
| 1 x | sensor cable | ||
| 1 x | heat meter | ||
| 1 x | calculator with battery | ||
| 1 x | flow sensor | ||
| 1 x | gaskets | ||
For more information see Downloads
| OEG no. | 512242882 |
| Pressure [bar]: | 16 |
| Nominal size [DN]: | 20 |
| Flow rate [m³/h]: | 2.5 |
| Total length [mm]: | 130 |
| Connection size [inch]: | 1 |
| Protection type [IP]: |
 IP65
|
| Length x Width x Height [mm]: | 110 x 34.5 x 75 |
| Operating mode: | M-Bus interface |
| Weight [kg] | 0.9 |
| Notes |
CE
|
| Customs tariff number | 90261021 |
Question
bonjour serait t'il posible de savoire si le compteur et muttie potition mercie
Answer OEG:
Le calorimètre peut être installé horizontalement et verticalement.
Question
Hey it says that there are m-bus. So it is the model where that option is allready included? Regards Kristian
Answer OEG:
Yes, this compact heat meter is with option M-Bus delivered.
