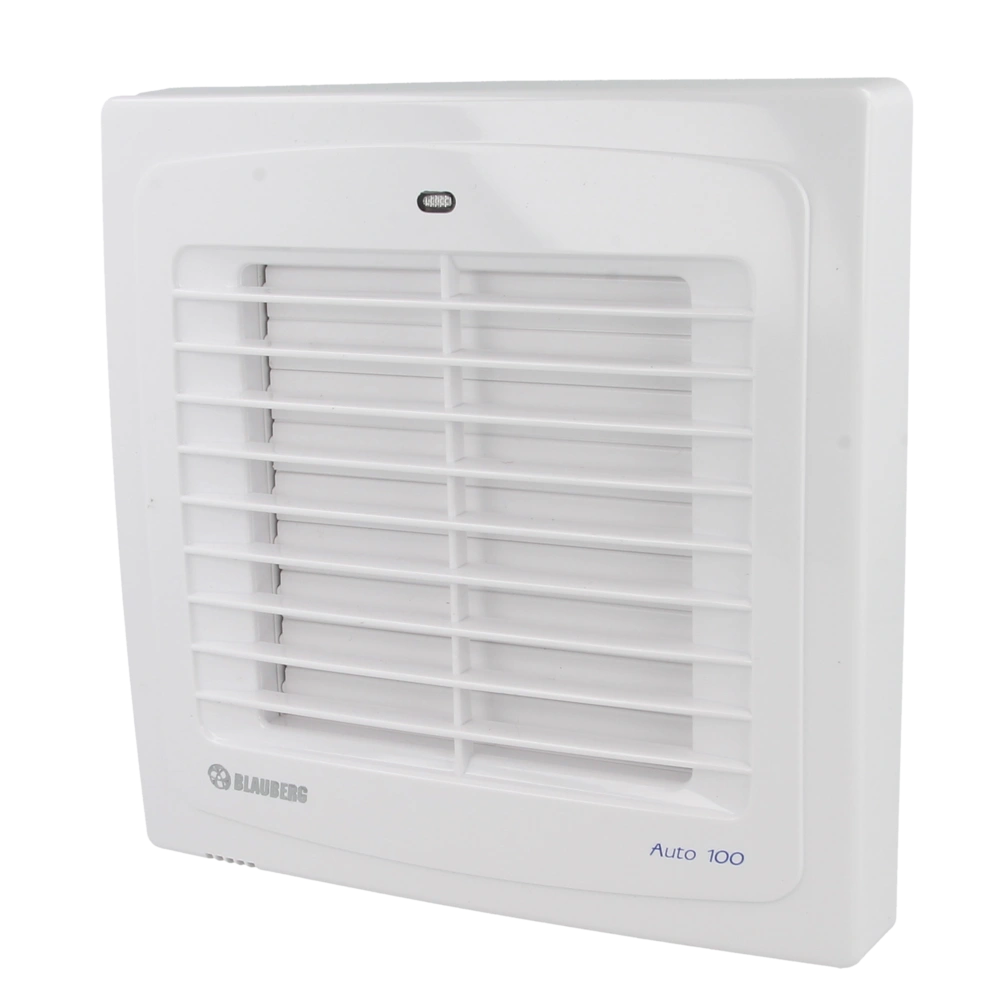

Fan for wall mounting. The housing, grille and impeller are made of high-quality ABS plastic material. The motor is low-noise and energy-saving.
The shutters open and close automatically with a short delay due to bimetal...
All product informationRelated products
Timer
CE
GS-certified
Fan for wall mounting. The housing, grille and impeller are made of high-quality ABS plastic material. The motor is low-noise and energy-saving.
The shutters open and close automatically with a short delay due to bimetal. The fan has an electronic time relay. Thus, the delay time can be adjusted from 2 to 30 minutes.
For more information see Downloads
| OEG no. | 610604200 |
| Design: | Overrun switch |
| Mounting type: | Wall mounting |
| Output [W]: | 18 |
| Voltage [V]: | 230 |
| Pipe diameter [mm]: | 100 |
| Protection type [IP]: |
 IP24
|
| Length x Width x Height [mm]: | 90 x 150 x 150 |
| Ambient temperature [°C]: | 1 .. 45 |
| Delivery rate [m³/h]: | 98 |
| Speed max. [1/min]: | 2,300 |
| Sound pressure level [dB]: | 34 |
| Type: | Auto |
| Manufacturer | Blauberg |
| Manufacturer number | 8004551 |
| EAN | 4058448004551 |
| Also replaces |
|
| Weight [kg] | 0.84 |
| Notes |
Timer
CE
GS-certified
|
| Customs tariff number | 84145100 |
Question
Hallo,auch für die Deckenmontage geeignet?
Answer OEG:
Guten Tag,
der Artikel Fan with time delay relay ist auch für die Deckenmontage geeignet.
Mit freundlichen Grüßen
You have to be logged in to ask a question
17/06/2015, 08:43:44 of: Mr Grundmann Ulli
Ist alles wunderbar
Der Ventilator erfüllt voll seinen Zweck
