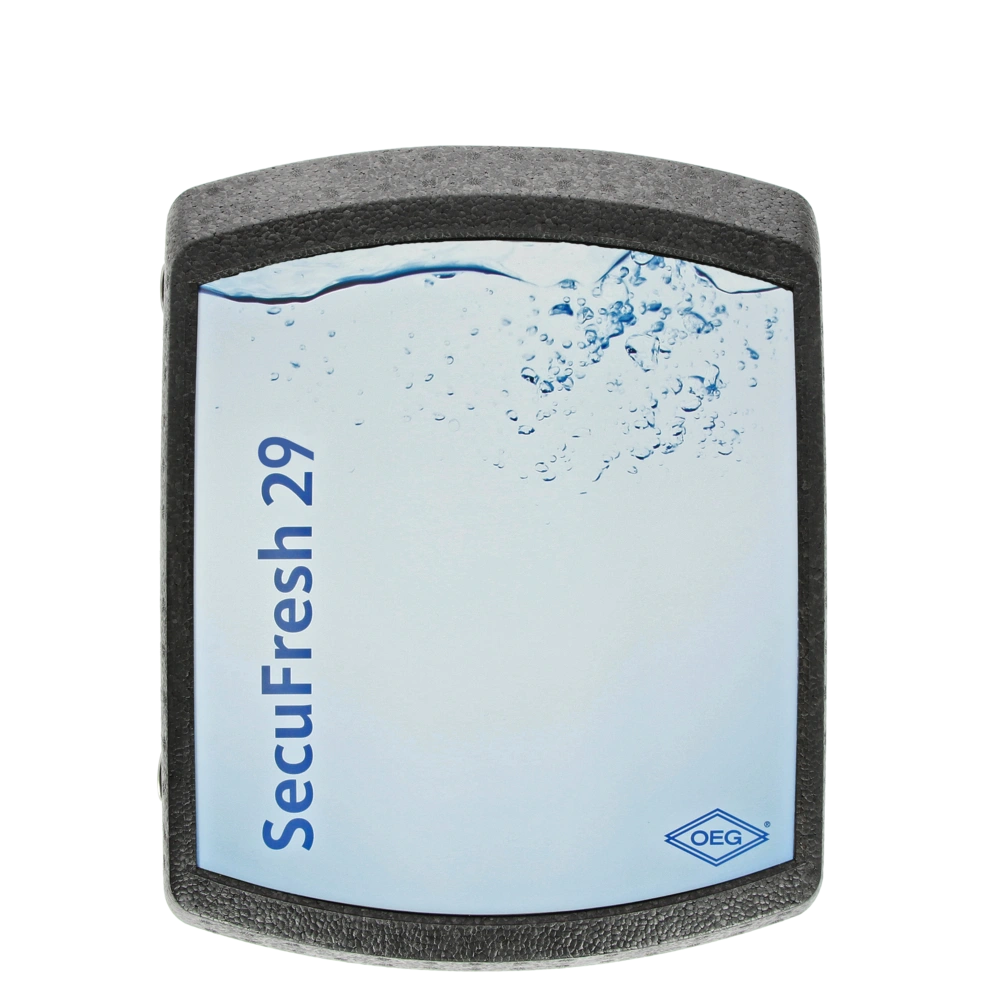

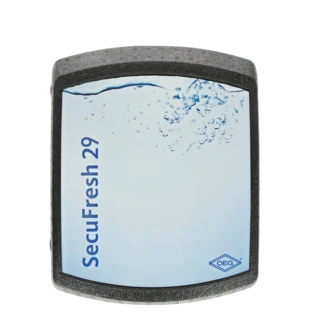

Fresh water station SecuFresh 29

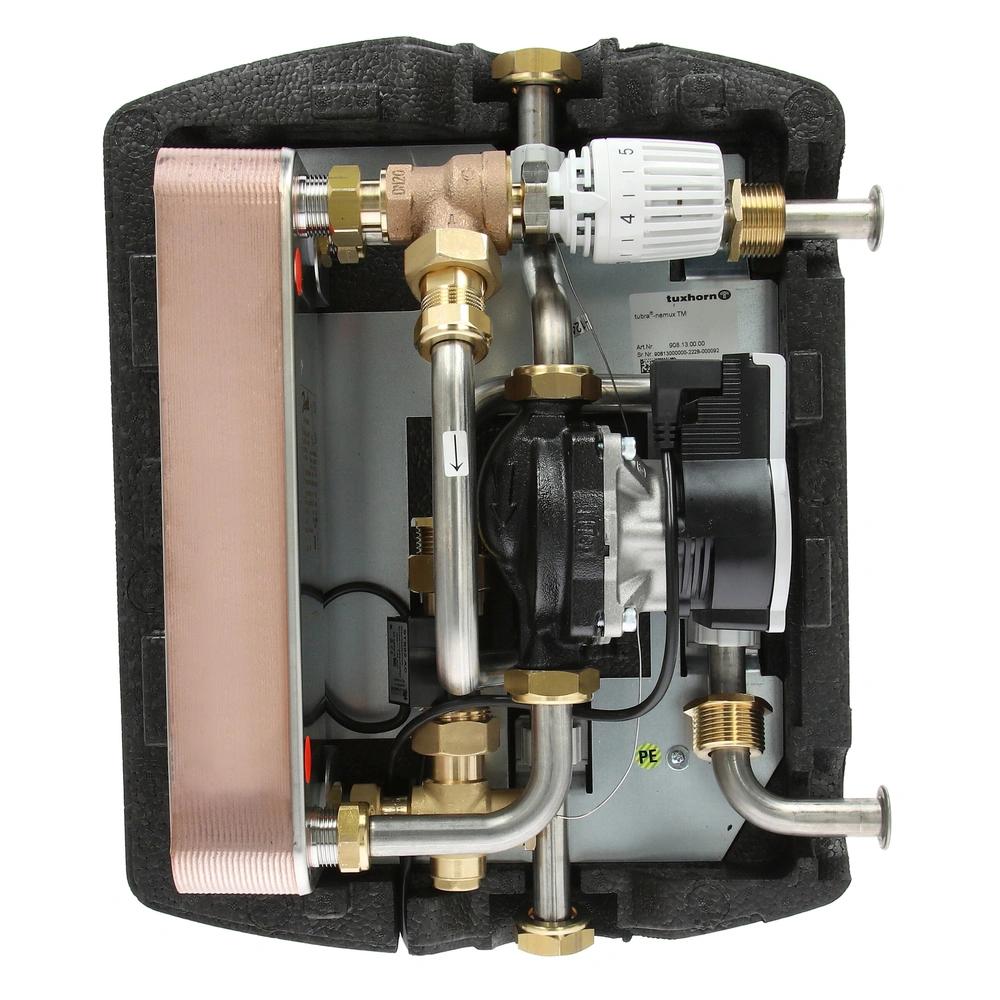

Thermally controlled fresh-water station with a tap capacity of up to 29 litres/minute. Heat is transferred via buffer storage tank to the integrated stainless steel plate heat exchanger, which heats up the drinking water based on needs...
All product informationThermally controlled fresh-water station with a tap capacity of up to 29 litres/minute. Heat is transferred via buffer storage tank to the integrated stainless steel plate heat exchanger, which heats up the drinking water based on needs. Thus, the user is provided with hygienically clean drinking water at all times.
For more information see Downloads
| OEG no. | 516006028 |
| Tap capacity max. [l/min]: | 29 |
| Rated power [kW]: | 83 |
| Nominal size [DN]: | 20 |
| Connection heating circuit: | 1" IT |
| Connection hot water: | 1" ET |
| Length x Width x Height [mm]: | 190 x 350 x 425 |
| Smooth-pipeheatexchanger: | 40 plates |
| Insulation: | EPP |
| Operating pressure heating side: | Max. 3 bar |
| Operating pressure drinking water side: | Max. 10 bar |
| Operating temperature heating side max. [°C]: | 95 |
| Operating temperature drinking water side max. [°C]: | 65 |
| Manufacturer | OEG |
| Weight [kg] | 34 |
| Customs tariff number | 84199085 |
goedendag , is er grafiek wat de tempratuur is bij buffer van 50 graden .
De temperatuur is in te stellen met de thermostaatkop, de exacte temperaturen van de afzonderlijke stappen staan op pagina 54 in de gebruiksaanwijzing.
