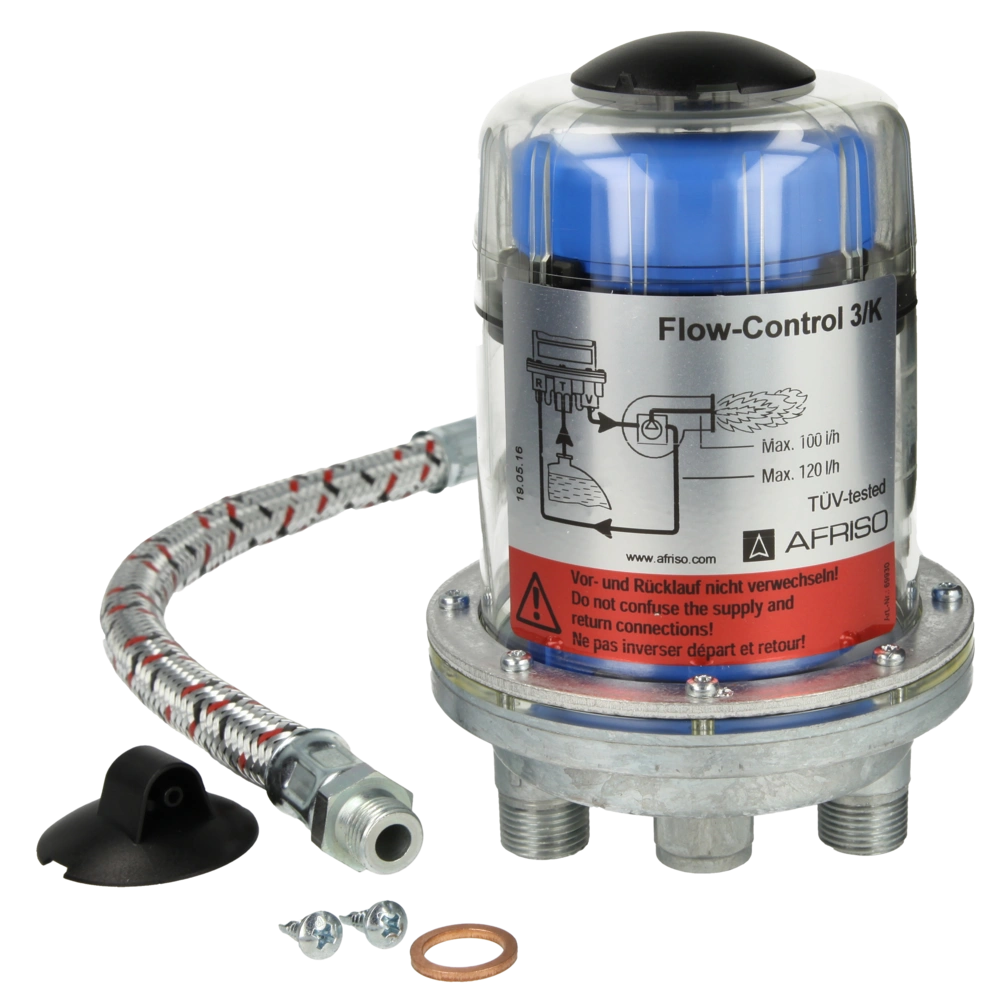

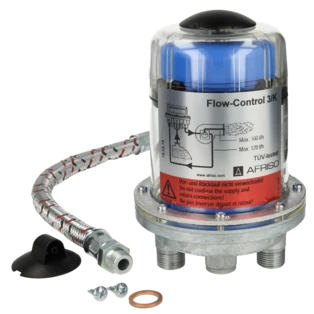

The fuel oil filter consists of a diecast zinc housing with deaerator cap made of transparent plastic. In its capacity as automatic deaerator, it provides for a smooth operation of single-line systems with return supply in oil-fired systems...
All product information Scope of deliveryThe fuel oil filter consists of a diecast zinc housing with deaerator cap made of transparent plastic. In its capacity as automatic deaerator, it provides for a smooth operation of single-line systems with return supply in oil-fired systems. The floats prevent oil foam from escaping. The de-aerator is suitable for the use with fuel oil EL, diesel fuel, biofuel and biodiesel with max. 30 % FAME.
The device can also be used in flood hazard areas. It is watertight up to 10 m water column. The installation position of the float housing is vertical towards the top. The maximum operating pressure of 0.7 bar equals a static oil column of approx. 8 m.
Scope of delivery: | |||
1 x | Heating oil de-aerator | ||
1 x | Hose 1|4" ET x 3|8" union nut | ||
1 x | copper flat seal | ||
2 x | screw | ||
1 x | Hose connection with O-ring |
For more information see Downloads
OEG no. | 116308320 |
Type of seal: | NBR |
Housing: | Zinc die casting |
Connection: | G3/8" with cone 60 ° |
Nozzle capacity: | Max. 100 l/h |
Length x Width x Height [mm]: | 147 x 95 x 95 |
Operating pressure max. [bar]: | 0.7 |
Return flow rate: | max. 120 l/h |
Ambient temperature [°C]: | 60 |
Media: | Fuel oil EL und Diesel fuel, Fuel oil with organic portion up to 30 % |
Manufacturer | Afriso |
Manufacturer number | 69930 |
EAN | 4016203699305 |
Weight [kg] | 0.7 |
Customs tariff number | 84818079 |
