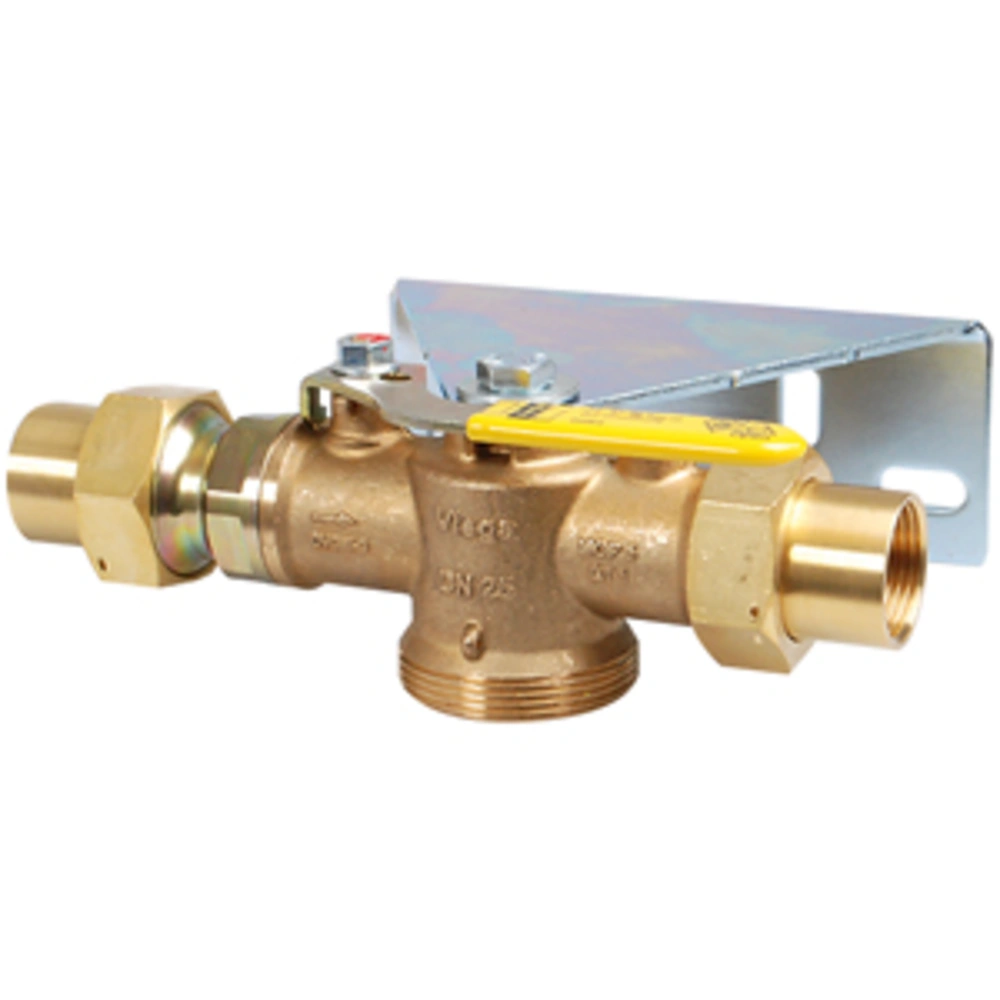

Gas meter ball valve for one-pipe gas meters 1" with GFM 6.0 m³ 618322
OEG no.: 135501913
Gas meter ball valve with wall bracket and test screw as well as a lockable and sealable lever for connecting a one-pipe gas meter.
All product information
certified by DVGW
Gas meter ball valve with wall bracket and test screw as well as a lockable and sealable lever for connecting a one-pipe gas meter.
For more information see Downloads
| OEG no. | 135501913 |
| Model: | G2112.1S |
| Connection size: | 1" |
| Design: | with excess flow device 6.0 m³/h |
| Temperature max. [°C]: | 70 |
| Temperature resistance [°C | min]: | 650 | 30 |
| Operating pressure max. [bar]: | 5 (MOP5) |
| Manufacturer | Viega |
| Herstellernummer | 618322 |
| EAN | 4015211618322 |
| Weight [kg] | 0.7 |
| Notes |
certified by DVGW
|
| Customs tariff number | 84818081 |
Question
(Design: with excess flow device 6.0 m³/h)
Anschlussgröße Einrohrzähler muß 2 3/4" Überwurf, Technische Daten ?
Answer OEG:
Die Anschlussverschraubungen sind 1 3/8".
Technical data sheet (PDF)
- 0.15MB
