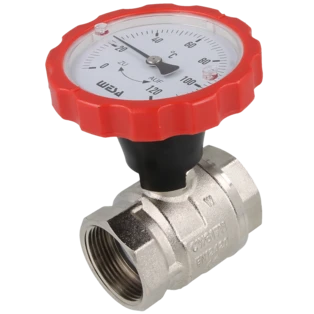

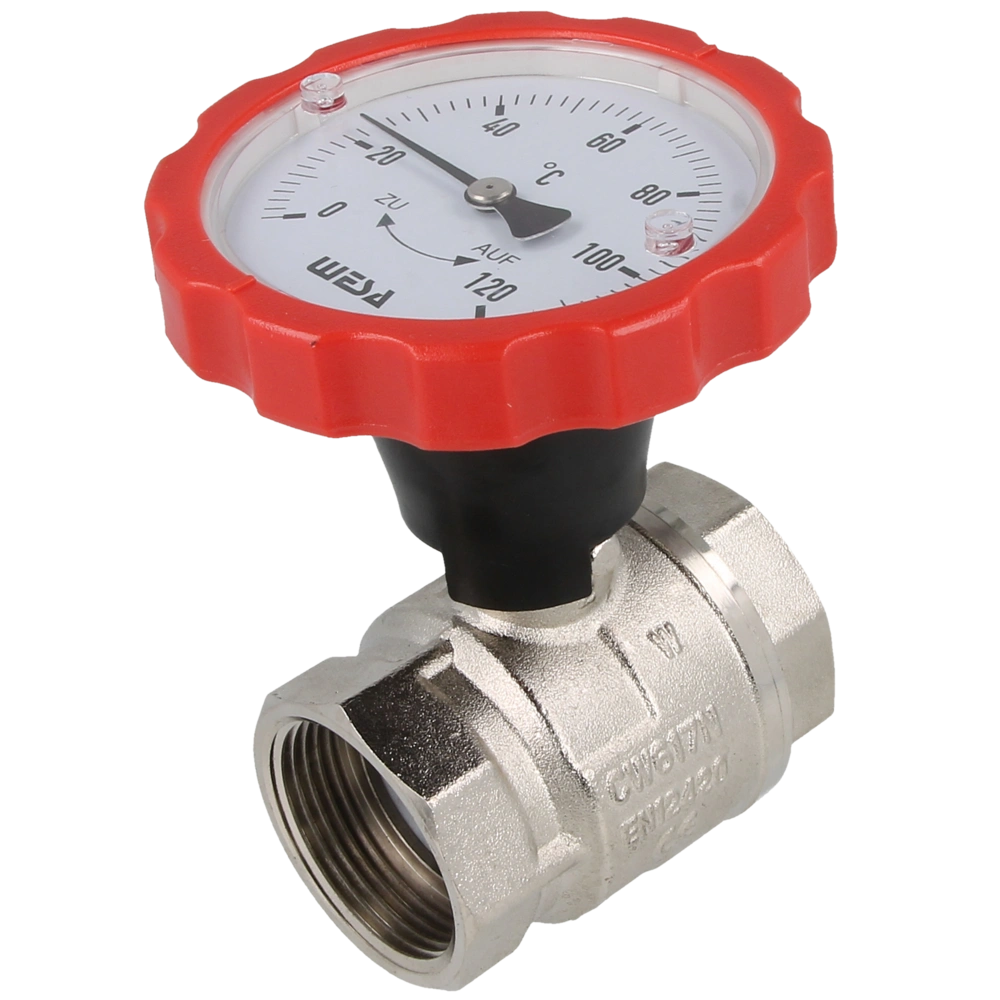

ISO-Therm ball valve red 1 1/4" IT thermometer handle 69007R
OEG no.: 512270554
The heating ball valve ISO-Therm with thermometer handle is approved for the use in the following media: heating, water (no approval as per DVGW/DIN1988), heating oil EL and S, greases, diesel oils,...
All product information
CE
The heating ball valve ISO-Therm with thermometer handle is approved for the use in the following media: heating, water (no approval as per DVGW/DIN1988), heating oil EL and S, greases, diesel oils, lubricants, fuels (also with high benzene concentrations), paints, lacquers, solvents, alkalis, weak lyes and acids.
For more information see Downloads
| OEG no. | 512270554 |
| Colour: |
 Red
|
| Material: | Brass nickel-plated MS58 |
| Nominal pressure: | 25 bar |
| Total length [mm]: | 76 |
| Connection size: | 1 1/4" |
| Type of connection: | Female thread | Female thread |
| Operating temperature [°C]: | -20 .. 120 |
| Standard: | DIN EN 12420 |
| Seal: | PTFE with FKM | FPM |
| Manufacturer | Wesa-Armaturen |
| Manufacturer number | 69007R |
| Weight [kg] | 0.5 |
| Notes |
CE
|
| Customs tariff number | 84818081 |
Question
(Colour: Red | Connection size: 1")
Guten Morgen, wann wären 50 Stück von diesem Artikel wieder lieferbar ? Gibt es eine Maßzeichnung hiervon ? freundliche Grüße Manfred Mölling
Answer OEG:
Guten Tag,
diese Produkte sind kurzfristig, in der Regel innerhalb weniger Tage lieferbar. Eine Maßzeichnung finden Sie in den Downloads des Artikels.
Mit freundlichen Grüßen
Question
(Colour: Red | Connection size: 1 1/4")
kan bij een defecte thermometer deze worden uitgewisseld zonder de installatie leeg te laten lopen?
Answer OEG:
Goedemorgen,
Om de thermometer te vervangen, moet de gekleurde ring worden verwijderd, op zich heel eenvoudig.
