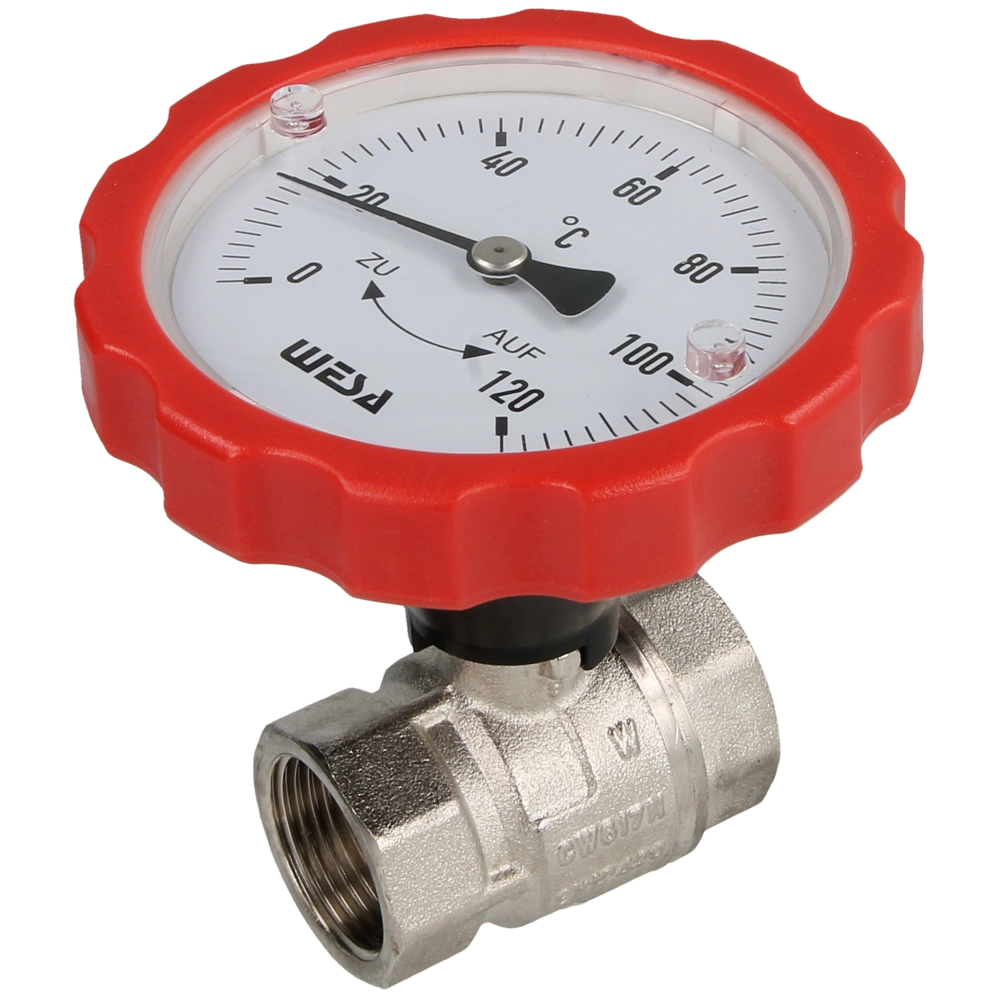

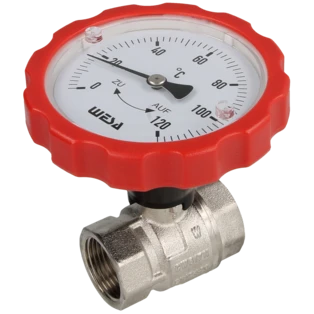

ISO-Therm ball valve red 3/4" IT thermometer handle 69005R
OEG no.: 512270552
The ball valve is nickel-plated and a heavy-duty model with thermometer handle. It has a full bore, can be fully insulated and is equipped with a packing gland. The thread is standardised as per ISO 228/1...
All product information
CE
The ball valve is nickel-plated and a heavy-duty model with thermometer handle. It has a full bore, can be fully insulated and is equipped with a packing gland. The thread is standardised as per ISO 228/1.
The ball valve is used for water (not according to DVGW/DIN), greases, fuel oils, diesel oils, lubricant oils, fuels (also with high benzene content), paints, lacquers, solvents, alkalis, weak lyes and acids.
For more information see Downloads
| OEG no. | 512270552 |
| Colour: |
 Red
|
| Material: | Brass nickel-plated MS58 |
| Nominal pressure: | 40 bar |
| Total length [mm]: | 55 |
| Connection size: | 3/4" |
| Type of connection: | Female thread | Female thread |
| Operating temperature [°C]: | -20 .. 120 |
| Standard: | DIN EN 12420 |
| Seal: | PTFE with FKM | FPM |
| Manufacturer | Wesa-Armaturen |
| Manufacturer number | 69005R |
| Weight [kg] | 0.5 |
| Notes |
CE
|
| Customs tariff number | 84818081 |
Question
(Colour: Red | Connection size: 1")
Guten Morgen, wann wären 50 Stück von diesem Artikel wieder lieferbar ? Gibt es eine Maßzeichnung hiervon ? freundliche Grüße Manfred Mölling
Answer OEG:
Guten Tag,
diese Produkte sind kurzfristig, in der Regel innerhalb weniger Tage lieferbar. Eine Maßzeichnung finden Sie in den Downloads des Artikels.
Mit freundlichen Grüßen
Question
(Colour: Red | Connection size: 1")
kan bij een defecte thermometer deze worden uitgewisseld zonder de installatie leeg te laten lopen?
Answer OEG:
Goedemorgen,
Om de thermometer te vervangen, moet de gekleurde ring worden verwijderd, op zich heel eenvoudig.
