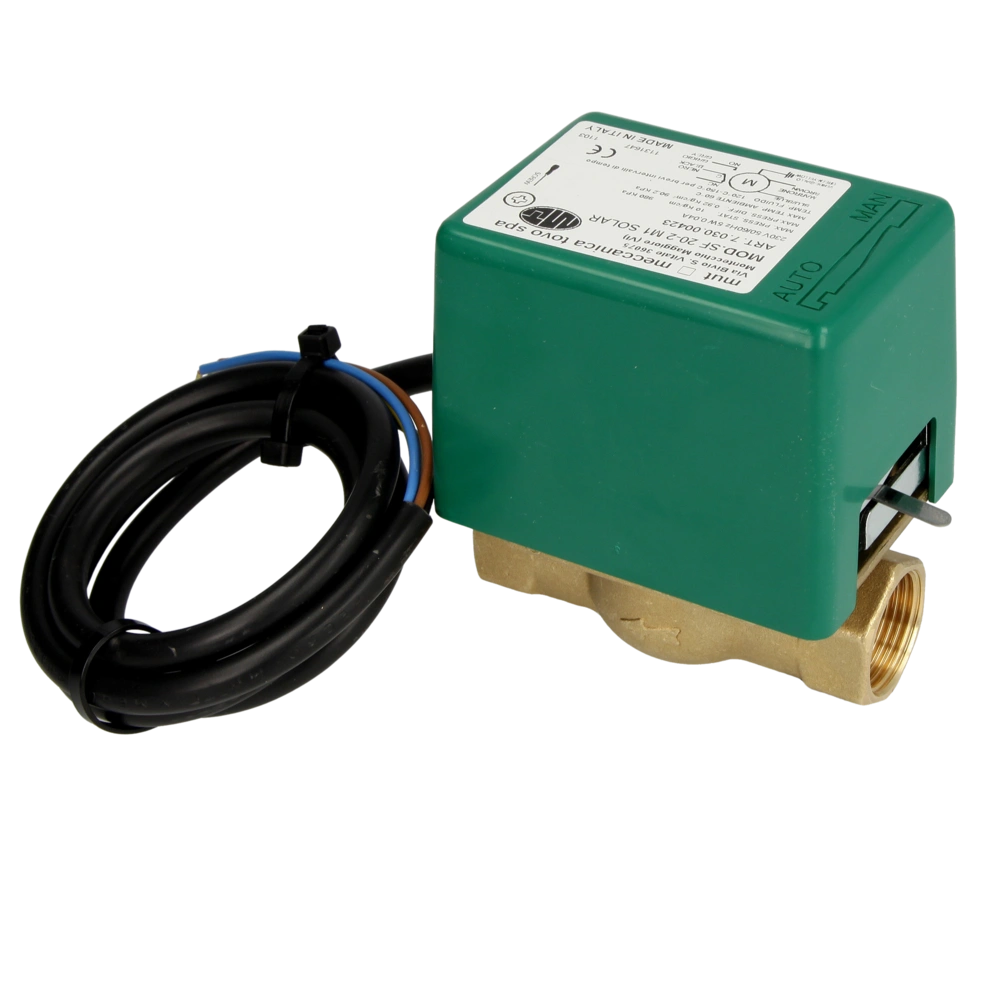

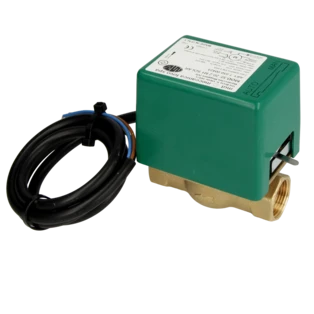

MUT 2-way zone valve solar 1" IT with auxiliary micro switch
OEG no.: 516100140
The 2-way zone valve provides a good number of options to control complex solar systems. It requires only one switching phase, no change-over contact and closes spring-loaded. A manual lever is integrated...
All product information
CE
IP22
The 2-way zone valve provides a good number of options to control complex solar systems. It requires only one switching phase, no change-over contact and closes spring-loaded. A manual lever is integrated. An auxiliary micro switch is available as optional actuator.
For more information see Downloads
| OEG no. | 516100140 |
| Connection size: | 1" IT |
| kvs-value [m³/h]: | 9.0 |
| Media temperature [°C]: | 5 .. 120 |
| Pressure max. [bar]: | 10 |
| Closing time [s]: | 4 |
| Opening time [s]: | 10 |
| Voltage [V]: | 230 |
| Cable length: | 1 |
| Power consumption [W]: | 5 .. 6 |
| Differential pressure [bar]: | 0.9 |
| Housing: | Brass |
| Protection type [IP]: |
IP22
|
| Media: | Water with up to 50 % glycol |
| Auxiliary switch: | 3A, 250 VAC |
| Weight [kg] | 1.3 |
| Notes |
CE
IP22
|
| Customs tariff number | 85011093 (IT) |
Question
Wat is het verschil tussen IS en US aansluiting ?
Answer OEG:
IS = Inwendig Schroefdraad
US = Uitwendig Schroefdraad
Question
zijn er losse onderdelen te krijgen van deze kleppen?
Answer OEG:
Goedemorgen,
Nee, die kunnen wij hiervoor helaas niet leveren.
Question
wat is de aansluitwaarde van de servo motor in watts of VA.?
Answer OEG:
Goedemorgen, 6W dus 6VA.
