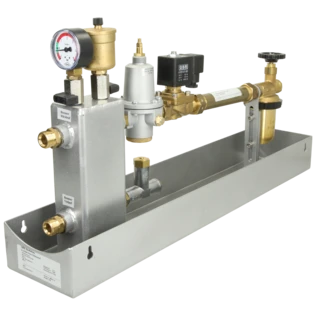

Pressure control system DRS 1, 360 l/h 1/2"

The OEG pressure control system has been particularly developed to provide a safe solution for oil pressure systems.
All the required components for a safe and reliable operation have been compiled in one compact assembly group. The oil pressure line is supplied for a burner capacity of approx. 2,000 kW.

Maintenance and repair work of old, existing installations are often more extensive than it seems at first glance. If, due to local conditions, e.g. when the oil pipe is very long or there are major height differences to the tank, because of higher purchase quantities or also for financial reasons, the repair of an oil supply system with a pressure pump is necessary, the current safety regulations also mostly have to be complied with.

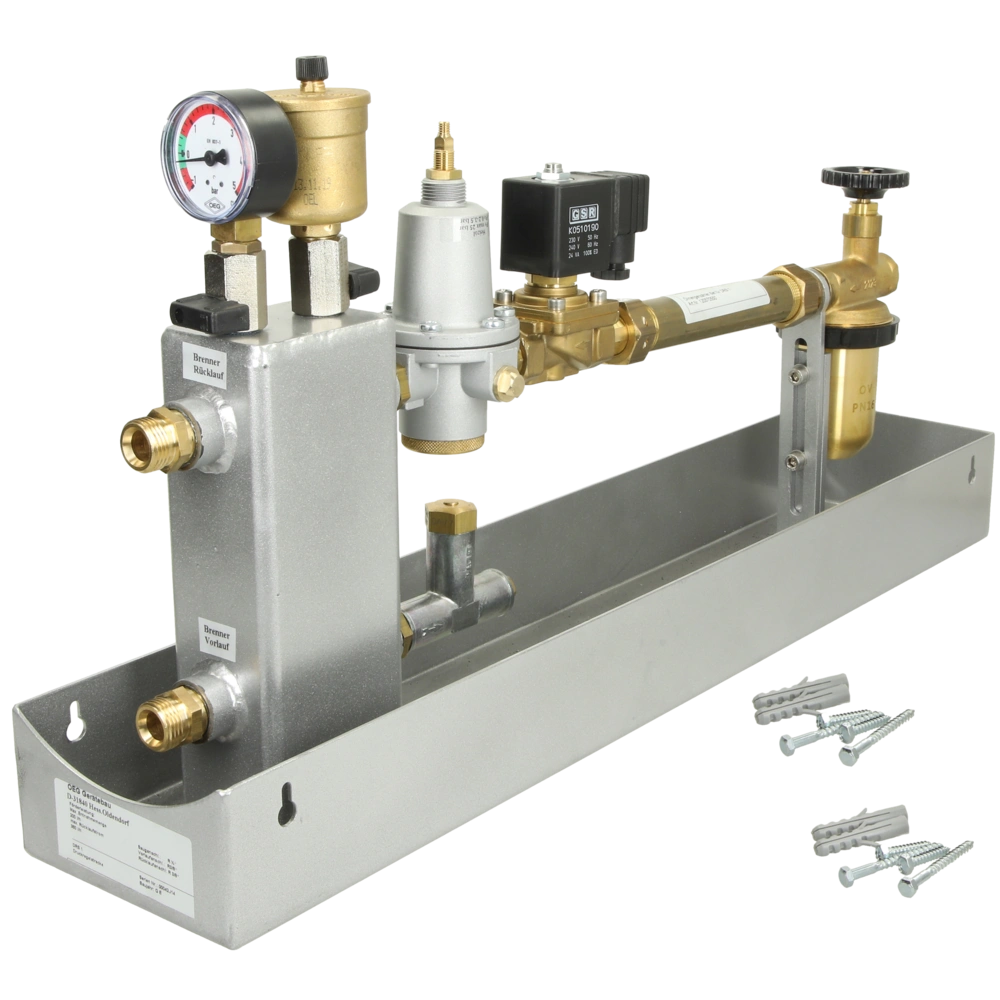

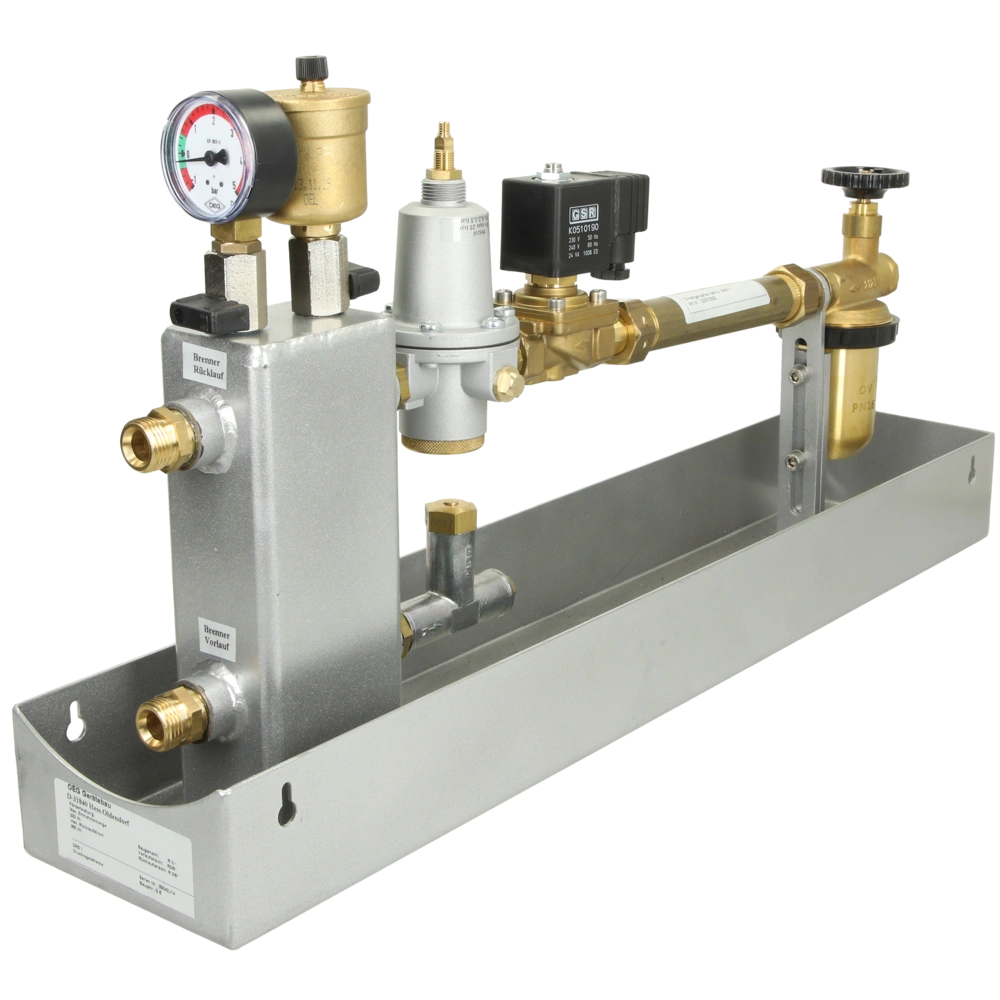

The pressure control system consists of a filter with metal cup and shut-off, an adapter for oil meters for subsequent installation of a meter, a solenoid valve, a pressure reducing valve, a dynamic pressure or recirculation vessel with shut-off pressure gauge and an automatic air vent as well as a pressure compensator to compensate for possible thermal expansions.
