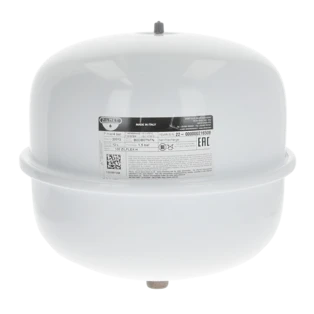

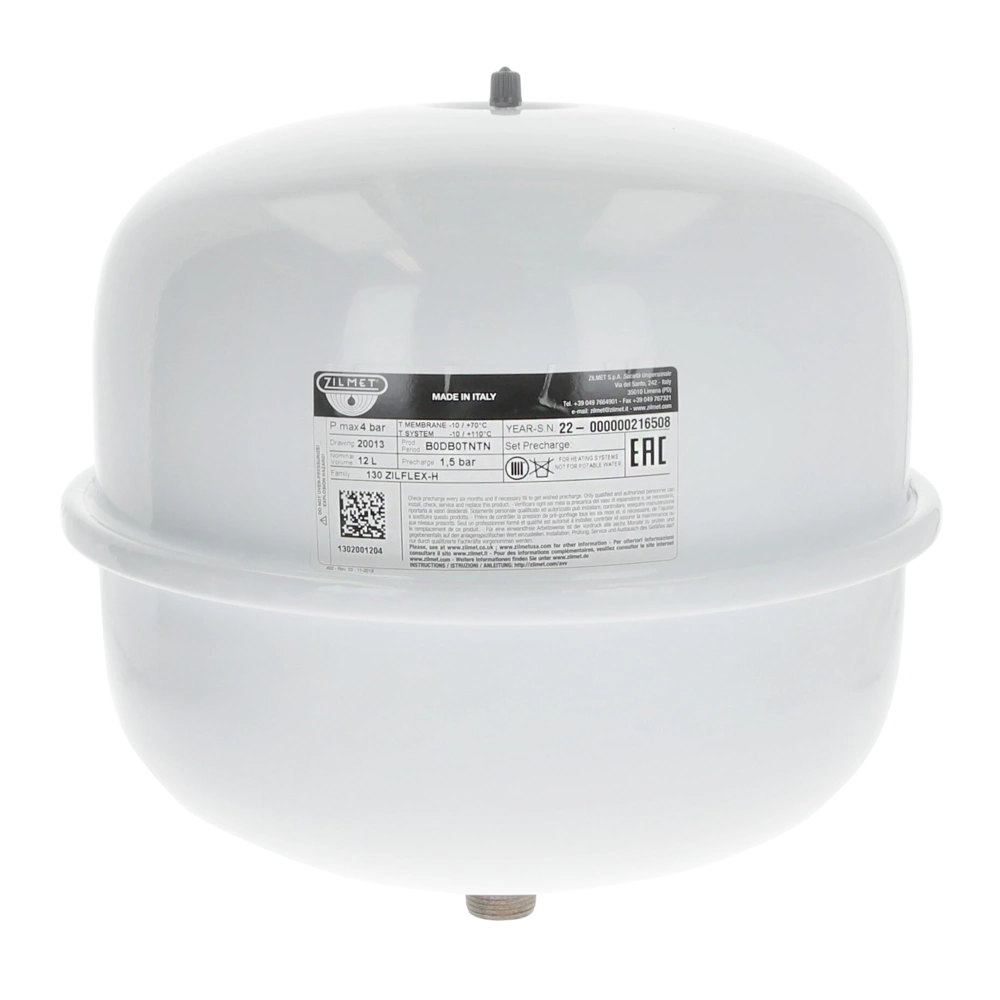

Pressure expansion vessel Zilflex-H 12 litres 1302001204
OEG no.: 512236100
Membrane pressure expansion vessel for the use in closed heating installations and refrigeration systems.
All product informationMembrane pressure expansion vessel for the use in closed heating installations and refrigeration systems.
For more information see Downloads
| OEG no. | 512236100 |
| Diameter: | 294 mm |
| Colour: |
 White
|
| Height [mm]: | 281 |
| Type: | Zilflex H |
| Pre-charge pressure [bar]: | 1.5 |
| DIN: | EN 13831, EN 12828 |
| Connection: | 3/4" |
| Capacity [l]: | 12 |
| Operating pressure max. [bar]: | 4 |
| Temperature [°C]: | -10 .. 110 |
| Manufacturer | Zilmet |
| Manufacturer number | 1302001204 |
| EAN | 8019855023845 |
| Weight [kg] | 3.6 |
| Customs tariff number | 84798997 (IT) |
Question
(Capacity [l]: 25)
Bonjour, est-ce que ce modèle est prévu pour l'eau sanitaire?
Answer OEG:
non, pour l'eau sanitaire il faut prendre par exemple Expansion vessel Intervarem 25 l for domestic water ou Expansion vessel 24 litres for heating and domestic water installations.
Question
(Capacity [l]: 25)
Quel est la dimension du vase d'expension
Answer OEG:
Le diamètre est de 220 mm, la hauteur de 302 mm.
