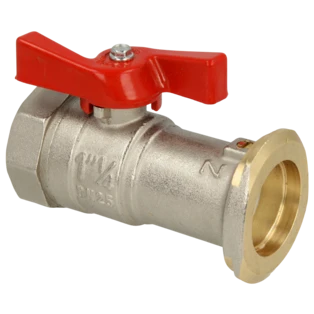

Pump ball valve 1 1/4" for 2" union nut with gravity brake
OEG no.: 512270340
The pump ball valve with connection flange for union nuts can be connected directly to the circulation pumps and the pipes.
All product informationThe pump ball valve with connection flange for union nuts can be connected directly to the circulation pumps and the pipes.
For more information see Downloads
| OEG no. | 512270340 |
| Type of connection: | Female thread | flange |
| Connection size: | 1¼" IT |
| Suitable for screw connection: | 2" union nut |
| Design: | With gravity brake |
| Material: | Brass |
| Total length [mm]: | 103 |
| Pressure stage PN [bar]: | 16 |
| Weight [kg] | 0.62 |
| Customs tariff number | 84818081 (EEC) |
Question
(Design: Without gravity brake | Connection size: 1" IT)
Pouvez-vous confirmer que les écrous sont bien livré avec ?
Answer OEG:
les écrous ne sont pas vendus avec. Il faut commander l´article Union nut 1 1/2" brass
Question
(Design: With gravity brake | Connection size: 1" IT)
hallo! können sie mir die Baulänge sagen?
Answer OEG:
Die Baulänge ist 90 mm.
Question
(Design: With gravity brake | Connection size: 1" IT)
quelle est la longueur de cette vanne
Answer OEG:
90 mm
Question
(Design: With gravity brake | Connection size: 1" IT)
quelle est la longueur de la vanne?
Answer OEG:
90 mm
Question
(Design: With gravity brake | Connection size: 1" IT)
Beste, Is deze pomp-kogelkraan ook beschikbaar met een ingebouwde terugslagklep? Alvast bedankt voor uw reactie
Answer OEG:
Goedemorgen,
Ja, u kunt deze hiervoor selecteren: Pump ball valve 1 1/4" for 2" union nuts with gravity brake
Question
(Design: With gravity brake | Connection size: 1" IT)
Mag ik het artikelnr voor de flens ?
Answer OEG:
Question
(Design: With gravity brake | Connection size: 1" IT)
Ich benötige die Baulänge des Kugelhahn DANKE!
Answer OEG:
Die Baulänge des Pumpenkugelhahns ist 103 mm.
Dimensional drawing (PDF)
- 0.02MB
