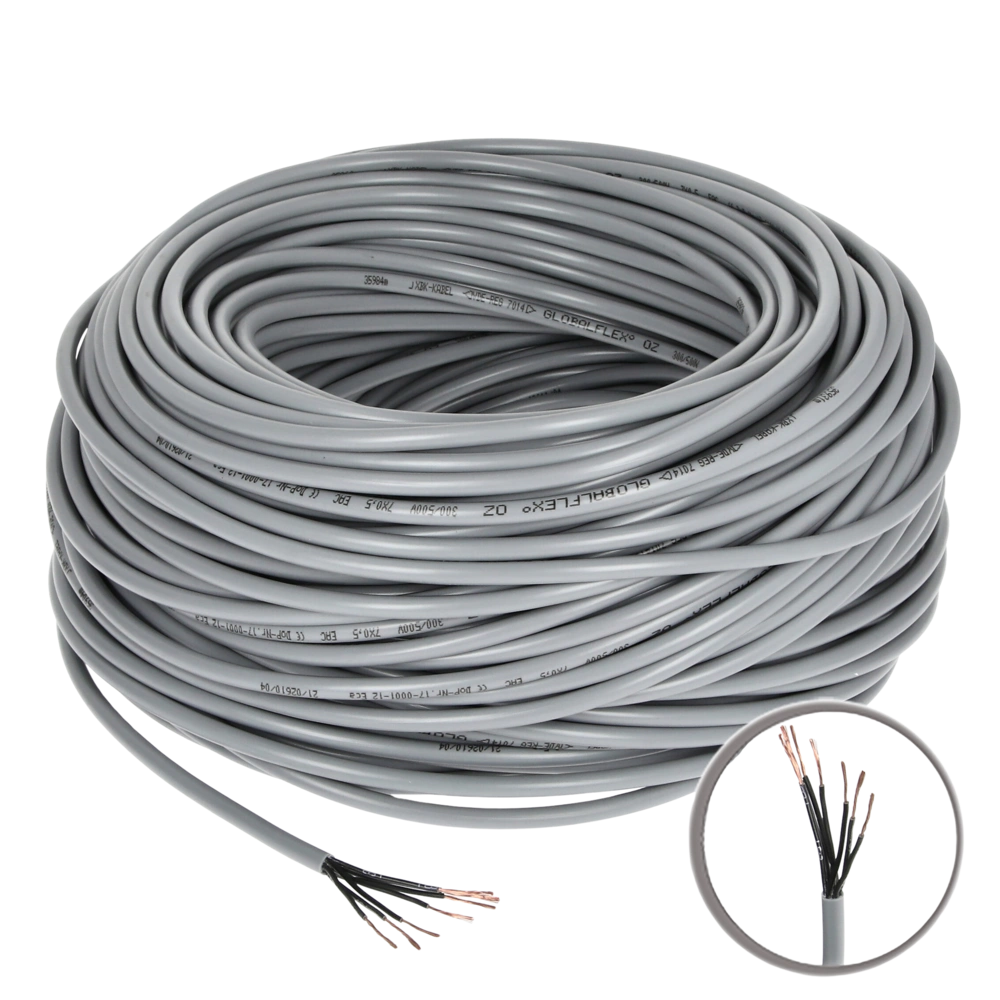

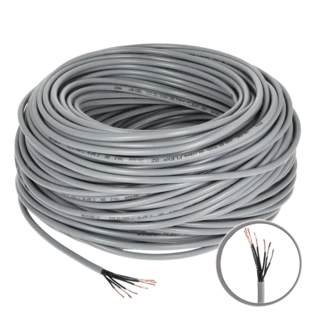

PVC control cable 7 x 0,5 mm² without protective conductor
OEG no.: 701001044
PVC control cable for universal use in building services, in machinery and plant engineering. Ideal for permanent laying in dry, moist and wet rooms. The control cable can also be used UV protected in cable ducts or pipes in outside areas...
All product information
PU
CE
EAC
PVC control cable for universal use in building services, in machinery and plant engineering. Ideal for permanent laying in dry, moist and wet rooms. The control cable can also be used UV protected in cable ducts or pipes in outside areas. The PVC sheath is flame-retardant.
| OEG no. | 701001044 |
| PU | 100 m ring |
| Number of cores: | 7 |
| Wire cross-section [mm²]: | 0.50 |
| Wire identification: | 7 x 0,50 |
| Copper content [kg/km]: | 34.0 |
| Protective conductor: | No |
| Rated voltage [V]: | 300/500 |
| Test voltage [V]: | 4,000 |
| Temperature range moving [°C]: | -5 .. 70 |
| Temperature range static [°C]: | -40 .. 80 |
| Insulation: | Special PVC |
| Cable construction: | Fine-wired |
| Conductor category: | 5 |
| Weight [kg] | 8.1 |
| Notes |
PU
CE
EAC
|
| Customs tariff number | 85444995 |
Question
(Number of cores: 4 | Wire cross-section [mm²]: 0.75)
Hier staat zwart afgebeeld maar ik moet hem grijs hebben
Answer OEG:
We hebben dit alleen met randaarde. Nr. PVC control cable 4 x 0.75 mm² with protective conductor
Question
(Number of cores: 3 | Wire cross-section [mm²]: 1.5)
Bonjour , Les fil de câble sont -il bleu/brun et vert jaune ? J'aurai souhaiter commander 3G2,5 et 3G1,5 dans cette gamme de câbles avec les couleurs !? Pourriez vous m'indiquer les références a commander. Merci.
Question
(Number of cores: 2 | Wire cross-section [mm²]: 0.50)
bonjour art 701001028 à 15.00 euro sur la promo ?? est la 22.66 ??
Answer OEG:
Bonjour,
Tous les prix sont majorés d´un supplément pour le cuivre.
You have to be logged in to ask a question
07/08/2016, 11:13:09 of: Mr Feld
gut
Eine sehr gute Ölflex Classic 110 7 X 0,5, außen Ø 6,7 mm
09/10/2015, 17:53:29 of: Mr Pascal
Cable electrique
Cable electrique de qualité en 7 conducteurs de 0.50
