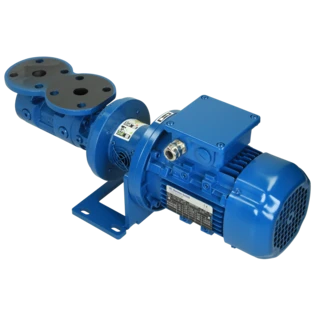

Screw spindle pump for conveying high- and low-viscosity oil and self-lubricating, non-aggressive media. Three spindles prevent the pumped medium from being squeezed. Thus, there will not be any pressure peaks in the system...
All product informationScrew spindle pump for conveying high- and low-viscosity oil and self-lubricating, non-aggressive media. Three spindles prevent the pumped medium from being squeezed. Thus, there will not be any pressure peaks in the system. The continuous-running pump runs particularly quietly and with low vibration.
For more information see Downloads
| OEG no. | 120560030 |
| Type: | KFT-7.5/4pole |
| Output max. [l/h]: | 312 |
| Pressure [bar]: | 4 |
| Speed [rpm]: | 1,450 |
| Suction connection: | DN25 |
| Pressure connection: | DN25 |
| Type of connection: | Flange |
| Output [kW]: | 0.25 |
| Voltage [V]: | 400 |
| Media temperature max. [°C]: | 80 |
| Manufacturer | OEG |
| Weight [kg] | 11.2 |
| Customs tariff number | 84136080 |
Question
(Output max. [l/h]: 90 | Suction connection: DN25)
Gibt es einen Dichtungssatz
Answer OEG:
Es gibt Dichtungssätze für die Spindelpumpen. Um den korrekten Satz heraussuchen zu können senden Sie uns bitte ein Bild des Typenschilds an verkaufoeg.net
Question
(Output max. [l/h]: 312 | Suction connection: DN25)
Saugt die Pumpe das Öl selbst an? Also baut sie Vakuum auf?
Answer OEG:
Ja, diese Pumpe ist selbstansaugend.
