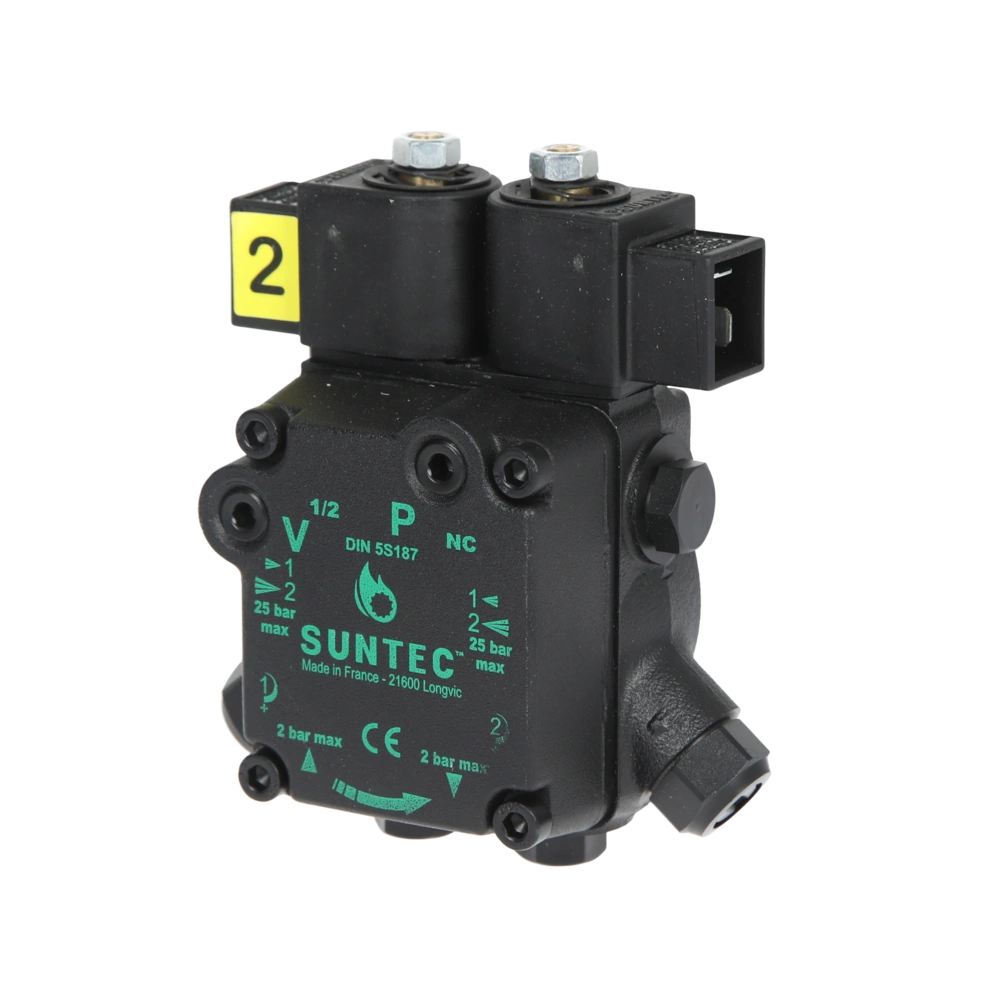

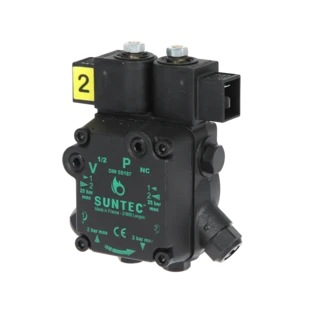

Service pump for oil burners ATUV45R9861 2-speed clockwise rotation 98616P0700I
OEG no.: 112000006
The service oil burner pump is suitable for the replacement of almost any oil burner pump in 2-speed version for burners with an output of up to 1 MW. The position of the nozzle outlet can be set optionally on the right or left side...
All product informationRelated products
The service oil burner pump is suitable for the replacement of almost any oil burner pump in 2-speed version for burners with an output of up to 1 MW. The position of the nozzle outlet can be set optionally on the right or left side. The pump is suitable for light and extra light heating oil, kerosene and biofuels up to B30. The pump is fitted with a pressure relief valve so that the use of LE oil burner nozzles is also possible.
Note:
When replacing a pump, take care of the correct connection of flow and return ports as these ports may be inverted depending on the pump model. The pump has a two-surface pump shaft. One- as well as two-surface pump couplings can be used.
For more information see Downloads
| OEG no. | 112000006 |
| Design: | Clockwise |
| Pressure [bar]: | 2 .. 25 |
| Connection size: | 1/4" for supply and return |
| Connection size 2: | 1/8" for nozzle outlets |
| Manufacturer | Suntec |
| Manufacturer number | 98616P0700I |
| Weight [kg] | 1 |
| Customs tariff number | 84136031 (FR) |
Answer OEG:
Bonjour,
Il faudrait prendre la pompe Oil burner service pump ATUV45L9860 2-speed left rotation plus les accouplements réf. Burner coupling 2-surface 22 mm et Burner coupling 2-surface 16 mm.
Cordialement,
Votre équipe OEG
