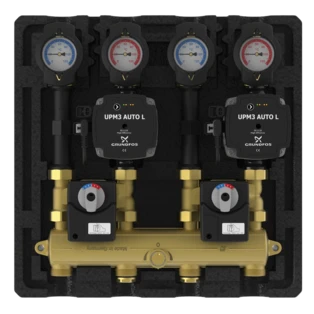

Thermax 2x K32 DN20 including servomotor 2 x Grundfos UPM3 L15-70

Hydraulic unit for efficient heating circuit distribution

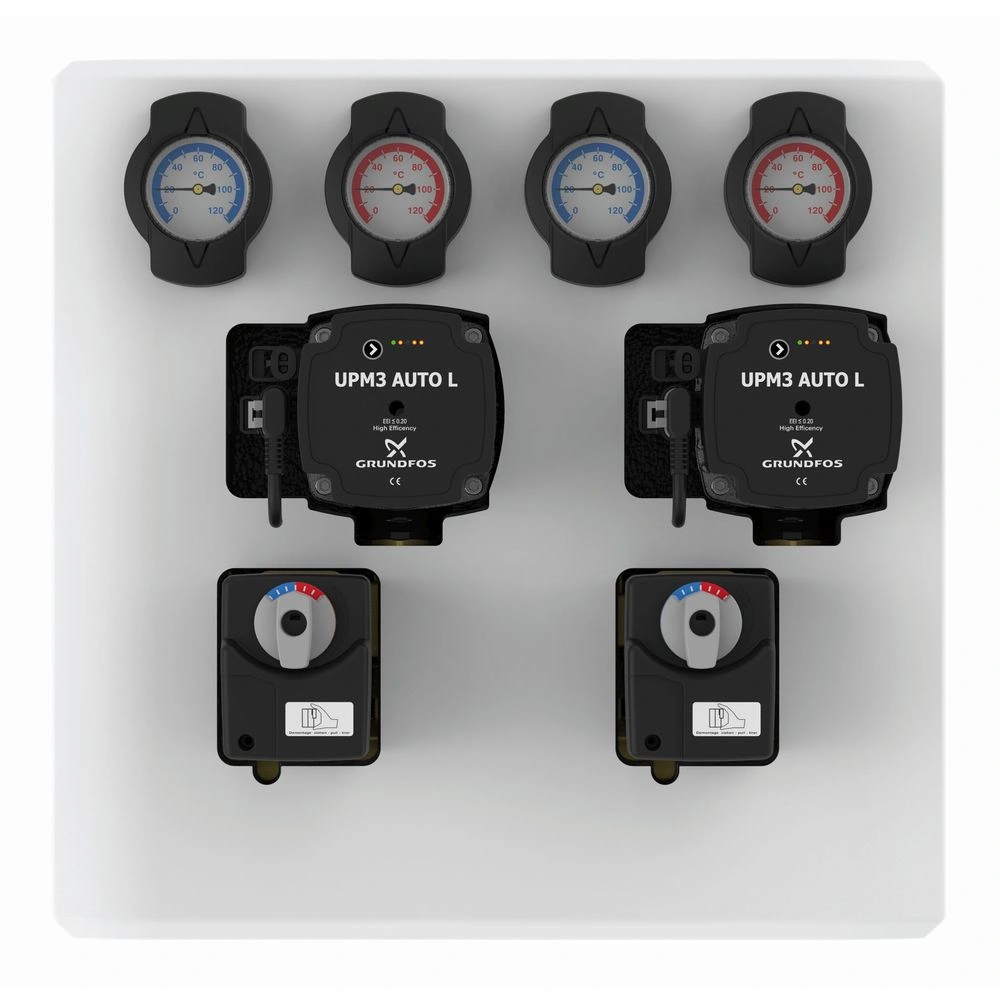

With this modular distribution system, you can rely on a sophisticated solution for the distribution of heating circuits. The pre-assembled fitting group combines two heating circuit modules with a module manifold and precisely matching design insulation. This allows closed heating circuits to be installed safely and cleanly - directly on the wall or with 100 mm spacing using optional spacers to lay pipes underneath.

The thermal decoupling between the heating circuits and heat generator ensures efficient control and prevents unwanted feedback effects. An integrated, infinitely adjustable bypass ensures the necessary forced circulation in the appliance - particularly important for modern controlled boilers. This means you benefit from stable operating conditions and reliable heat distribution, even with more complex systems.

For more information see Downloads
