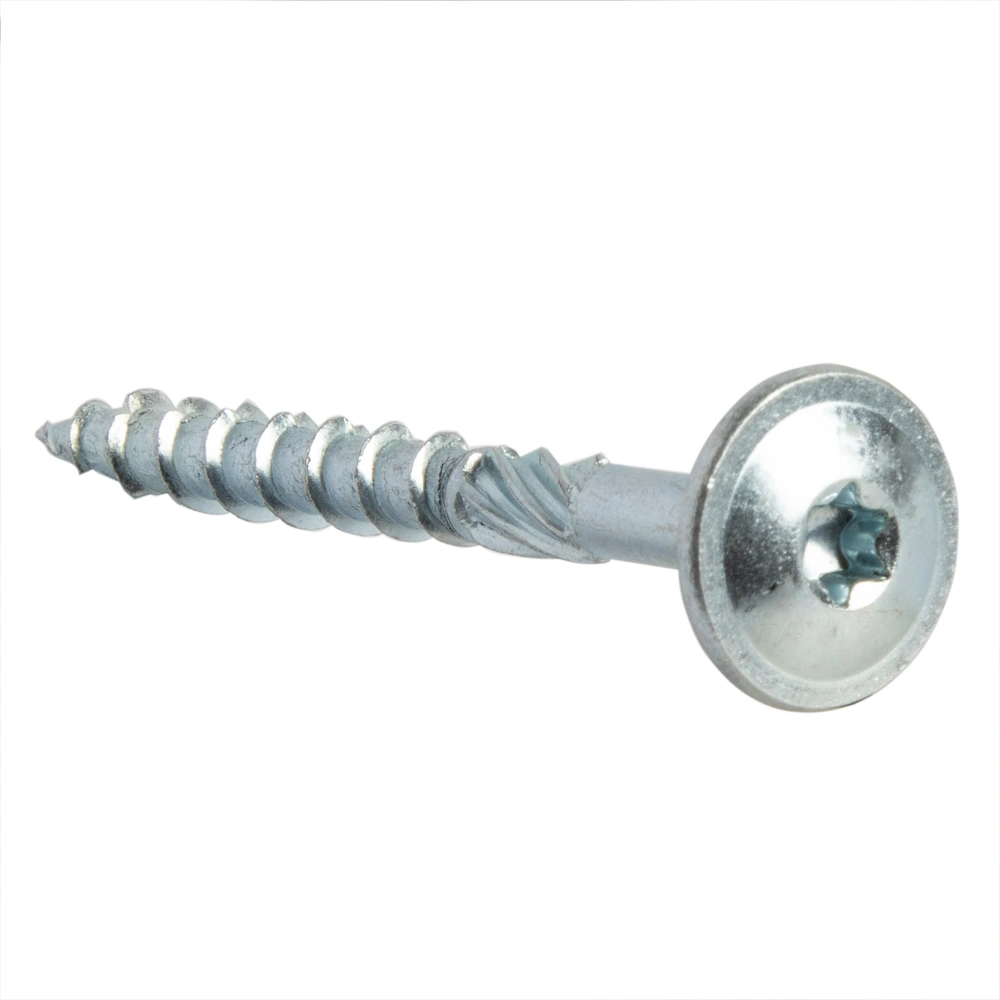

Timber construction screw Ø 8 x 120 mm galvanised flange head
OEG no.: 806003389
Timber construction screws made of carbon steel for joining wooden elements. They can be used for building carports, for roof and load-bearing timber structures. Shaft milling ribs ensure easy insertion,...
All product information
CE
Torx
Timber construction screws made of carbon steel for joining wooden elements. They can be used for building carports, for roof and load-bearing timber structures. Shaft milling ribs ensure easy insertion, the cut notch reduces splittings in wood. The flange head increases the contact pressure on the components.
For more information see Downloads
| OEG no. | 806003389 |
| PU | 50 pieces |
| Diameter [mm]: | 8 |
| Length [mm]: | 120 |
| Size: | 8 x 120 mm |
| Application : | Plywood, OSB boards, Particle boards, Fibre boards, Solid wood boards |
| Drive: | TX 40, Torx |
| Material: | Hardened carbon steel |
| Surface: | Blue-passivated, Anti-friction |
| Thread: | Partial thread |
| Head type: | Flange head |
| Approval: | ETA-23/0657 |
| Type: | TIMBR |
| Manufacturer | Tox |
| Weight [kg] | 0.8 |
| Notes |
CE
Torx
|
| Customs tariff number | 73181410 |
Question
(Size: 8 x 120 mm)
Peut-on connaitre le modèle d'embout Torx, SVP Est ce le Jeu d'embouts TX 30 x 25 mm N° art. OEG: 311821135 convient ?
Answer OEG:
oui il convient
Question
(Size: 8 x 120 mm)
Peut-on connaitre le modèle d'embout Torx, SVP Est ce le Jeu d'embouts TX 30 x 25 mm N° art. OEG: 311821135 convient ?
Answer OEG:
La vis est TX 40 et donc Bit set TX 40 x 25 mm convient.
