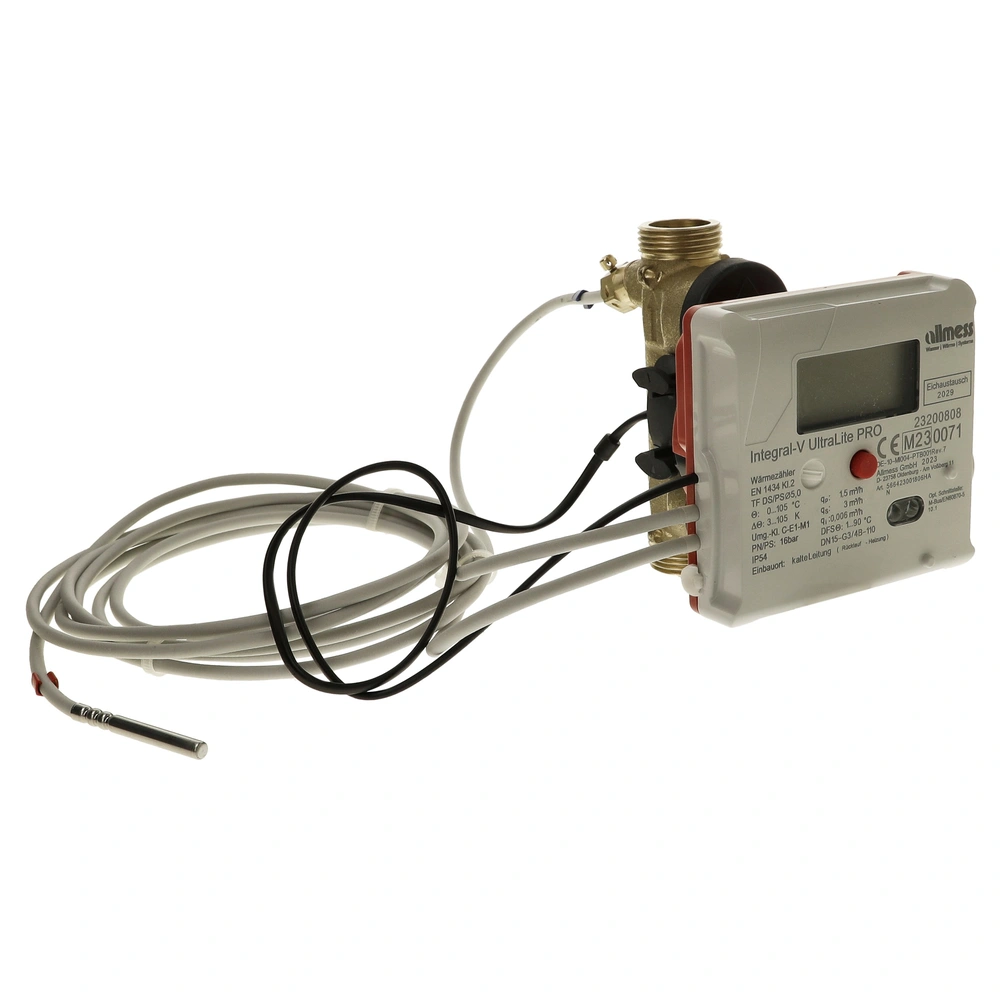

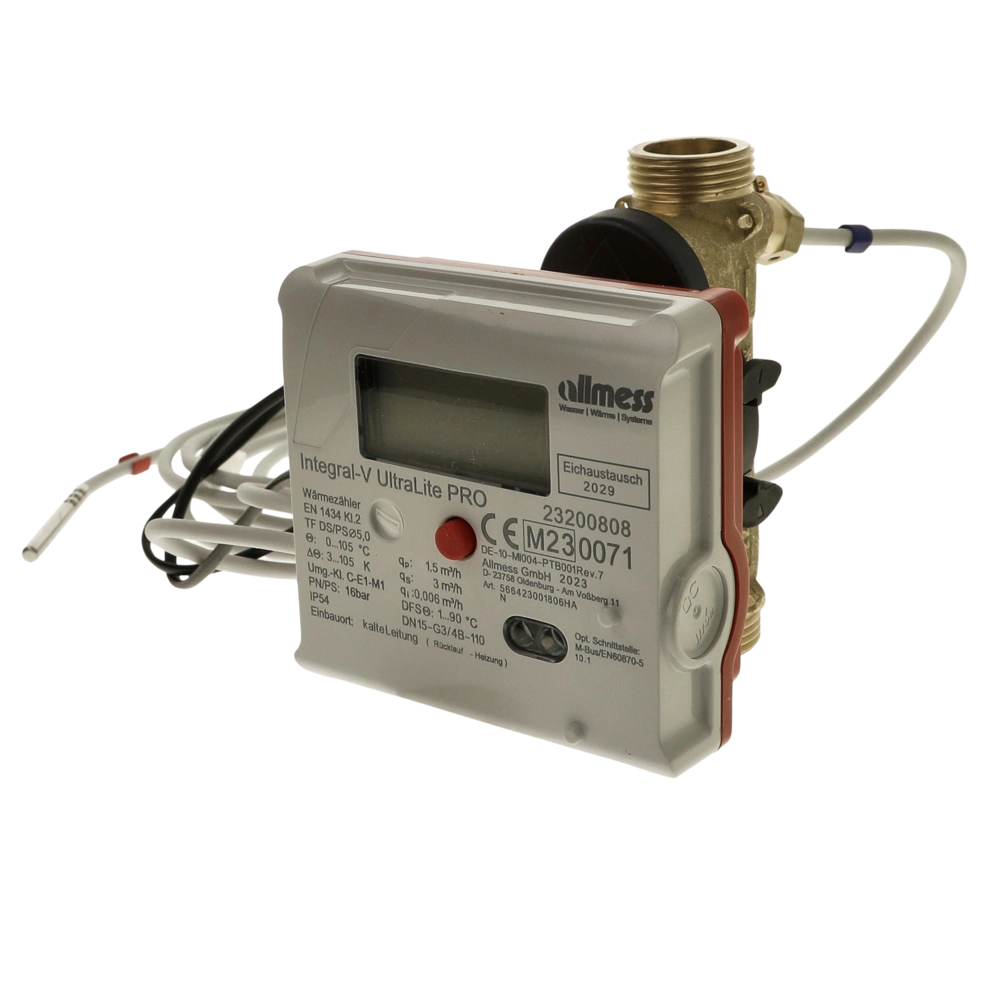

Ultrasonic compact heat meter 3/4" x 110 mm 566423001806HA
OEG no.: 512243055
Ultrasonic heat meter with large measuring range and remore readout. High sampling rates allow for an exact consumption recording even when temperatures are highly fluctuating.
The meter is suitable as replacement unit.
CE
Ultrasonic heat meter with large measuring range and remore readout. High sampling rates allow for an exact consumption recording even when temperatures are highly fluctuating.
The meter is suitable as replacement unit.
| Scope of delivery: | |||
| 1 x | compact heat meter with calculator | ||
| 1 x | flow sensor | ||
| 1 x | temperature sensor | ||
| 1 x | Lead-sealing material | ||
| 1 x | Sealing material | ||
| 1 x | Plastic sensor adaptor M10 x 1 | ||
For more information see Downloads
| OEG no. | 512243055 |
| Application: | Installation in existing immersion sleeves |
| Flow rate [m³/h]: | 1.5 |
| Flow rate max. [m³]: | 3 |
| Connection size: | 3/4" ET |
| Installation length [mm]: | 110 |
| Temperature range [°C]: | 0 .. 105 |
| Temperature max. [°C]: | 120 |
| Ambient temperature [°C]: | 5 .. 55 |
| Sensor type: | PT500 |
| Cable length: | 1.6 |
| Sensor diameter [mm]: | 5 |
| Connection cable [m]: | 0.5 |
| Mounting type: | Horizontal, Vertical |
| Approval: | MID |
| Power supply: | Lithium battery 6+1 year |
| Display: | LCD |
| Indication max.: | 100,000 kWh, 100,000 MWh |
| Measurement accuracy: | Class 2 |
| Nominal pressure PN [bar]: | 16 |
| Type: | Integral-V UltraLite PRO |
| Field of application: | Replacement |
| Protection type [IP]: |
 IP54
 IP67
|
| Calibration: |
 Yes
|
| Manufacturer | Allmess |
| Manufacturer number | 566423001806HA |
| Weight [kg] | 0.9 |
| Notes |
CE
|
| Customs tariff number | 90268020 |
Question
(Field of application: Retrofitting | New installation | Flow rate [m³/h]: 1.5)
Bonjour , Possibilité d'avoir la notice en français s'il vous plaît .
Answer OEG:
Elle est disponible sur notre site sous fichier PDF dans "Download"
Question
(Field of application: Retrofitting | New installation | Flow rate [m³/h]: 1.5)
Bonjour , Pouvez vous me communiquer le n° d'article pour le kit de vanne s'il vous plaît .
Answer OEG:
Veuillez consulter Installation kit for heat meters 3/4" x 110 mm et Installation kit for heat meters 3/4" x 110 mm
Question
(Field of application: Retrofitting | New installation | Flow rate [m³/h]: 1.5)
Attention doigts de gant sonde départ pas fourni et a commander séparément 512242853
Answer OEG:
Oui, un doigt de gant n'est pas inclus dans la livraison.
Question
(Field of application: Retrofitting | New installation | Flow rate [m³/h]: 1.5)
kan deze warmtemeter ook gebruikt worden om het verbruik te meten van warm water tegenover het verbruik van het cvwater in een combi cv toestel?
Answer OEG:
Ja, dit artikel is daarvoor geschikt. Aanvullende technische documentatie van de fabrikant zal binnenkort op onze website worden geplaatst.
