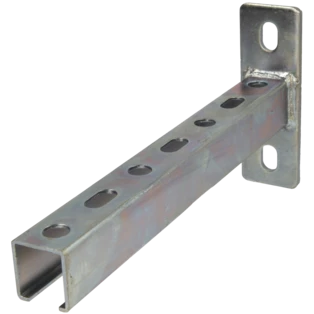

The stable wall bracket is used as cantilever bracket for pipe routes and pipe strings.
Dimensions of base plate (H x W x D):
120...
The stable wall bracket is used as cantilever bracket for pipe routes and pipe strings.
Dimensions of base plate (H x W x D):
120 x 40 x 4 mm
Suitable for: | ||
Mounting rail 1,000 mm long with profile 28/30 |
For more information see Downloads
OEG no. | 806000974 |
Model: | 28/30 |
Material: | Steel galvanised |
Length [mm]: | 400 |
Weight [kg] | 0.6 |
Customs tariff number | 83025000 (CN) |
La charge est de 150 kg pour une charge en 1 point au centre de la console,
Pour une charge en 2 points la répartirion est la suivante: 1/3 devant, 1/3 sur l´arrière avec 85-90 kg et le dernier tiers sur l´arrière avec 26 kg .
Pour une charge en 3 points, il a une distribution de 85-90/55/26 kg. Mettre au maximum 25 kg sur la partie avant.
