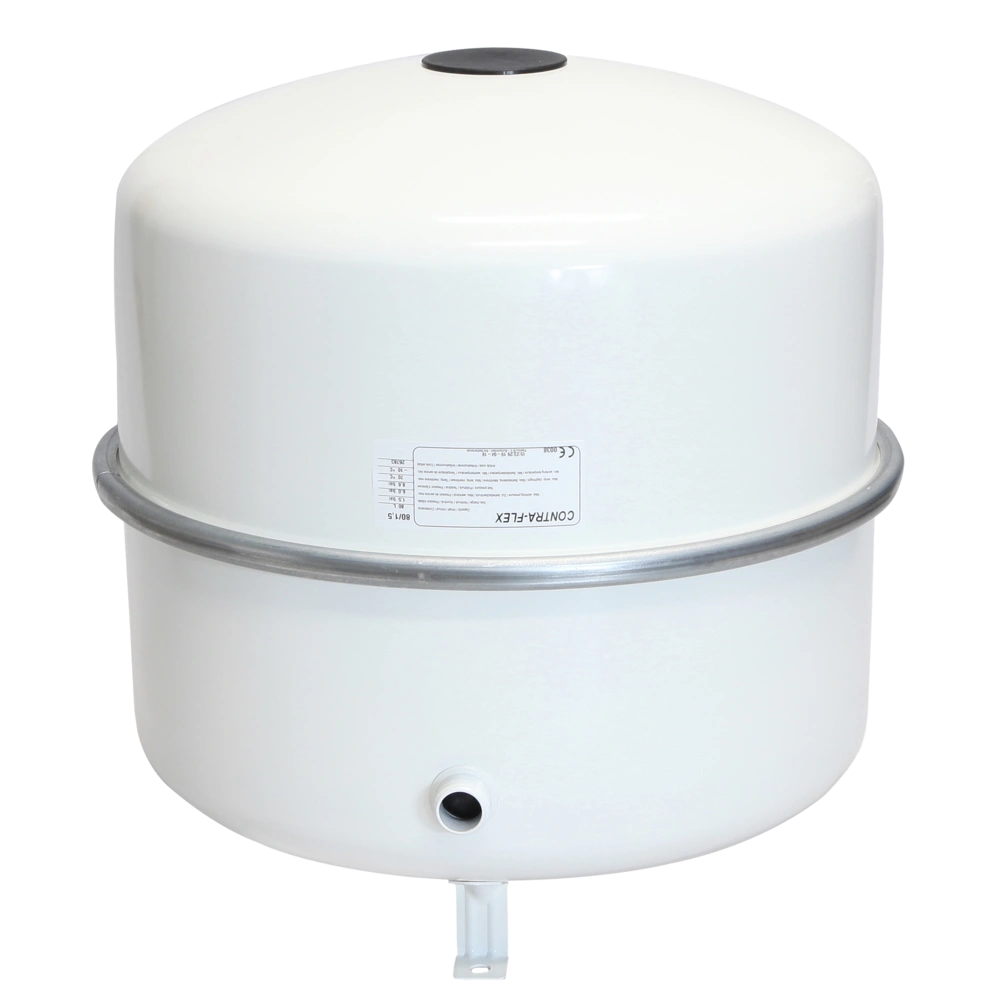

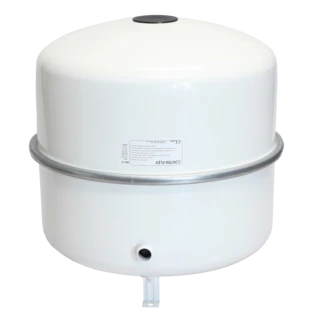

High-quality diaphragm expansion vessel suitable for closed heating and cooling installations. The flexible diaphragm compensates the thermal expansion of the water. Thereby, the pressure of the system remains constant. The vessel is filled with nitrogen gas to protect it against corrosion and pressure losses. Each vessel is factory-tested for tightness and pre-pressure. The diaphragm made of SBR rubber is approved for a glycol content of up to 50% in the water. The powder-coated steel half shells are connected by a galvanised clamp ring. The vessel is equipped with 3 stable, welded-on support feet.
For more information see Downloads
| OEG no. | 512239360 |
| Type: | Contra-Flex |
| Pre-charge pressure [bar]: | 1.5 |
| Capacity [l]: | 80 |
| Operating pressure max. [bar]: | 6 |
| Diameter x Height [mm]: | 519 x 534 |
| Standard: | EN 13831, EN 12828 |
| Connection size [inch]: | 3/4 |
| Operating temperature max. [°C]: | -10 - 70 |
| Membrane: | Fixed |
| Mounting type: | Vertical |
| Manufacturer | Flamco |
| Manufacturer number | 26783 |
| EAN | 8712874267831 |
| Weight [kg] | 19.3 |
| Notes |
CE
|
| Customs tariff number | 84798997 (NL) |
