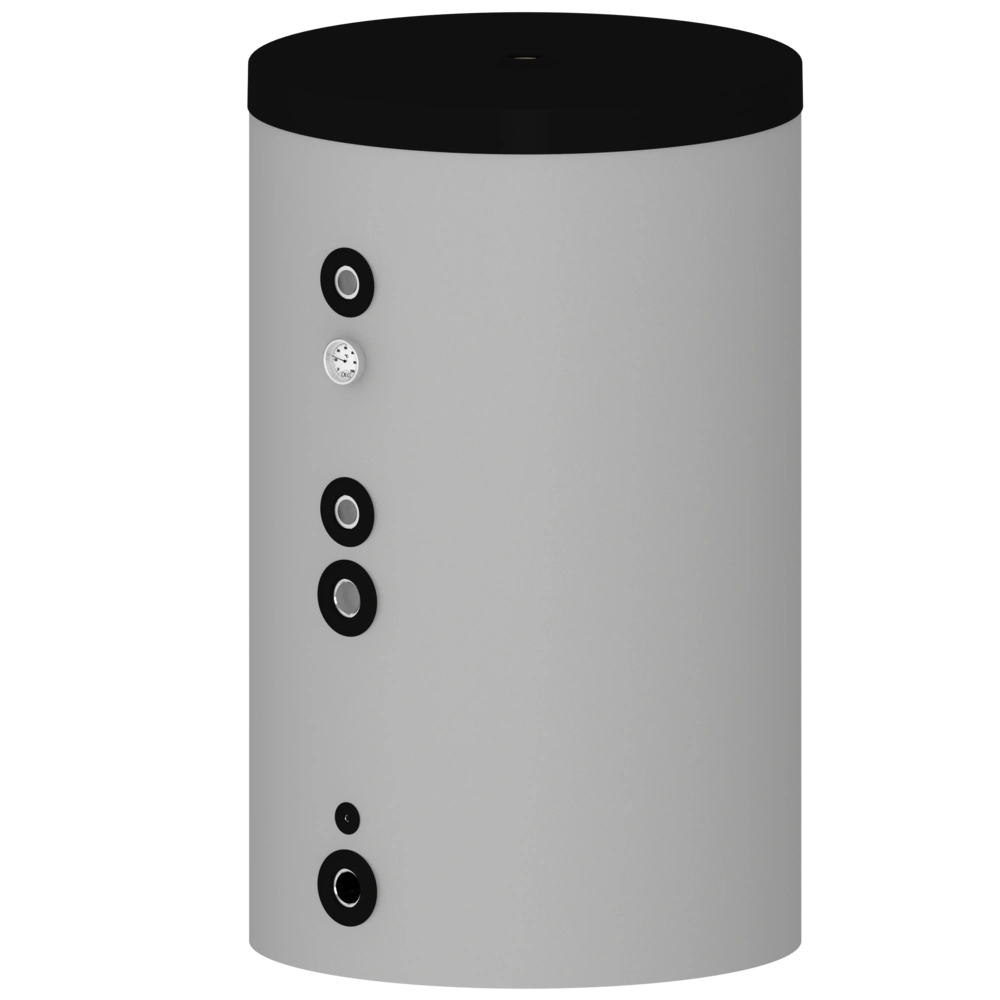

Fresh-water storage tank with defrosting buffer
OEG no.: 516005900
High-quality fresh-water storage tank with buffer unit for heat pump systems intended for hygienic domestic hot water heating in continuous flow principle and the heating or cooling of heating water...
All product information
Delivery by forwarding agency
High Quality

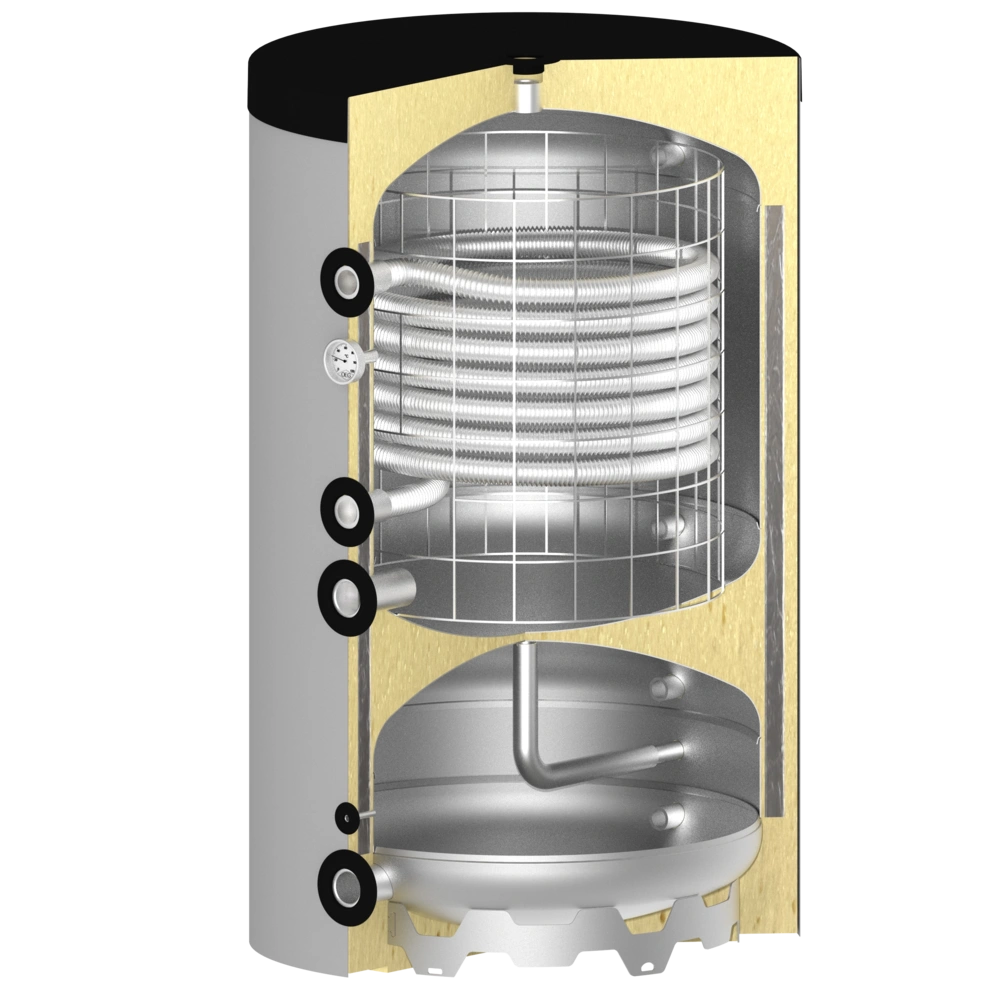

High-quality fresh-water storage tank with buffer unit for heat pump systems intended for hygienic domestic hot water heating in continuous flow principle and the heating or cooling of heating water. The storage tank takes up 2 functions. The fresh water is heated in the upper section of the tank, the lower section buffers the heating return and provides defrosting energy for the heat pump. The isolated structure of both tank sections allows large temperature differences. This enables the heat pump to heat the hot water and cool the surface heating system at the same time in summer. Separate heating elements can be retrofitted for either tank section.
For more information see Downloads
| OEG no. | 516005900 |
| Tank capacity fresh-water type [litres]: | 209 |
| Tank capacity buffer-type [litres]: | 100 |
| Type: | FKS 300-R |
| Smooth tube heat exchanger: | 0 |
| Recommended for: | Heat pumps |
| Operating mode: | bivalent |
| Manufacturer | OEG |
| Brand | Reverse+ |
| Energy efficiency class | A+ |
| ErP-Label |
|
| Notes |
Delivery by forwarding agency
High Quality
|
| Customs tariff number | 84191900 |
General
| Colour: | silver |
| Insulation according to DIN 4102-1 Fire Protection Class B2: | solid foamed insulation |
| Weight [kg]: | 115 |
| Total height including insulation [mm]: | 1232 |
| Diameter with insulation [mm]: | 760 |
| Tilt height [mm]: | 1460 |
| Energy efficiency class according to EU regulation no. 812/2013: | A+ |
| Heat retaining loss according to EN 12897 [W]: | 36 |
| Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 0,864 |
| Output capacity (45°C) [l]: | 119 |
| Performance indicator NL following DIN 4708: | 1,20 |
| Real volume according to EN 12897 [l]: | 309 |
| pmax Tank [bar]: | 3 |
| tmax Tank [°C]: | 95 |
| tmin Tank [°C]: | 10 |
| tmax Ambient air [°C]: | 30 |
| Max. rel. air humidity [%]: | 80 |
| Buffet storage tank capacity (part of the actual capacity) [l]: | 100 |
| DHW heat exchanger area [m²]: | 2,60 |
| DHW heat exchanger volume [l]: | 14,50 |
| pmax DHW heat exchanger [bar]: | 6 |
| tmax DHW heat exchanger [°C]: | 95 |
| Connection layout: | 180° |
| Connection sensor [Ø mm / terminal]: | 6 mm |
| Connection heat generator [thread]: | R 1" |
| Connection heat exchanger [thread]: | Rp 1" |
| Connection heating element [thread]: | Rp 1 1/2" |
| Max. immersion depth of screw-in heater [mm]: | 600 |
Question:
Gibt es für diesen Speicher ein Hydraulikschema, wie eine Wärmepumpe sinnvoll daran angeschlossen werden soll? vorab vielen Dank
Answer OEG:
Anschlussschemen finden Sie z.B. in der Bedienungsanleitung der Wärmepumpe 6 kW Heat pump package with fresh water combination storage tank 400 litres
Question:
Guten Tag Bei dem Speicher 200 Ltr ist das Trinkwasser in einer Edelstahlwellrohrltg oder ist der Speicher emaliert ?
Answer OEG:
Das Trinkwasser ist im Edelstahlwellrohr.
