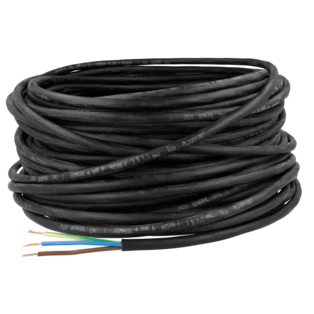

Heavy-duty rubber-sheathed cable 3 x 1.5 mm² H07RN-F with protective conductor
OEG no.: 701000216
Rubber-sheathed cable for the connection of electrical appliances with medium mechanical stress in dry, damp and wet rooms and outdoors. It is made up of finely stranded copper wires, a rubber insulation and a neoprene sheath...
All product information
CE
EAC
Rubber-sheathed cable for the connection of electrical appliances with medium mechanical stress in dry, damp and wet rooms and outdoors. It is made up of finely stranded copper wires, a rubber insulation and a neoprene sheath.
The rubber-sheathed cable has a core identification according to DIN VDE 0293, and it is flame-resistant.
These cables are allowed to be used in a protected, fixed installation of pipes or in equipment and also as rotor-connecting cable of motors each at a rated voltage of up to 1,000 V AC or up to 750 V DC against ground.
For more information see Downloads
| OEG no. | 701000216 |
| PU | 50 m ring |
| Number of cores: | 3 |
| Wire cross-section [mm²]: | 1.5 |
| Wire identification: | H07RN-F 3G x 1.5 |
| Colour: |
 Black
|
| Standard: | EN 50525-2-21 |
| PU: | 0285-525-2-21 |
| Copper content [kg/km]: | 43.2 |
| Rated voltage Uo/U [V]: | 450 / 750 |
| Operating temperature [°C]: | -30 .. 60 |
| Test voltage [V]: | 2,500 |
| Weight [kg] | 6.7 |
| Notes |
CE
EAC
|
| Customs tariff number | 85444995 |
Question (Wire cross-section [mm²]: 1.5 | Number of cores: 3)
Volgens de actie folder zou de prijs per rol €23,80 moeten zijn en niet €39,14 Waar zit dat prijs vershil in?
Answer OEG:
Goedemiddag,
Vanwege de sterk fluctuerende koperprijs, kunnen wij de kopertoeslag niet in de actie mee opnemen, maar wordt deze dagelijks actueel in de daadwerkelijke prijs mee opgenomen.
Question
pourquoi l'article est afficher a 84.86 (votre prix net) et une X dans le panier est afficher a 118,94??
Answer OEG:
C'est le surcoût de cuivre qui s'ajoute.
Question
Bonjour, je désirerais savoir le diametre exterieur du cable massif en caoutchouc H07RN-F 4G4, merci
Answer OEG:
Bonjour,
Le diamètre extérieur est de 14,2 mm.
Cordialement,
Votre équipe OEG
You have to be logged in to ask a question
31/12/2021, 09:55:22 of: Mr B.Eng. R. Schulz
Stabile Bauleitung
super für die Baustelle und schwere Anwendungen
07/08/2016, 15:09:15 of: Mr Feld
gut
Eine sehr gute Schwere Gummischlauchleitung H07RN-F 3G1,5, 50 m, schwarz
