Rubber-sheathed cable for the connection of electrical appliances with medium mechanical stresses in dry, damp and wet rooms and outdoors. It is made up of finely stranded copper conductors, a rubber insulation and a neoprene sheath...
All product informationRelated products
CE
EAC

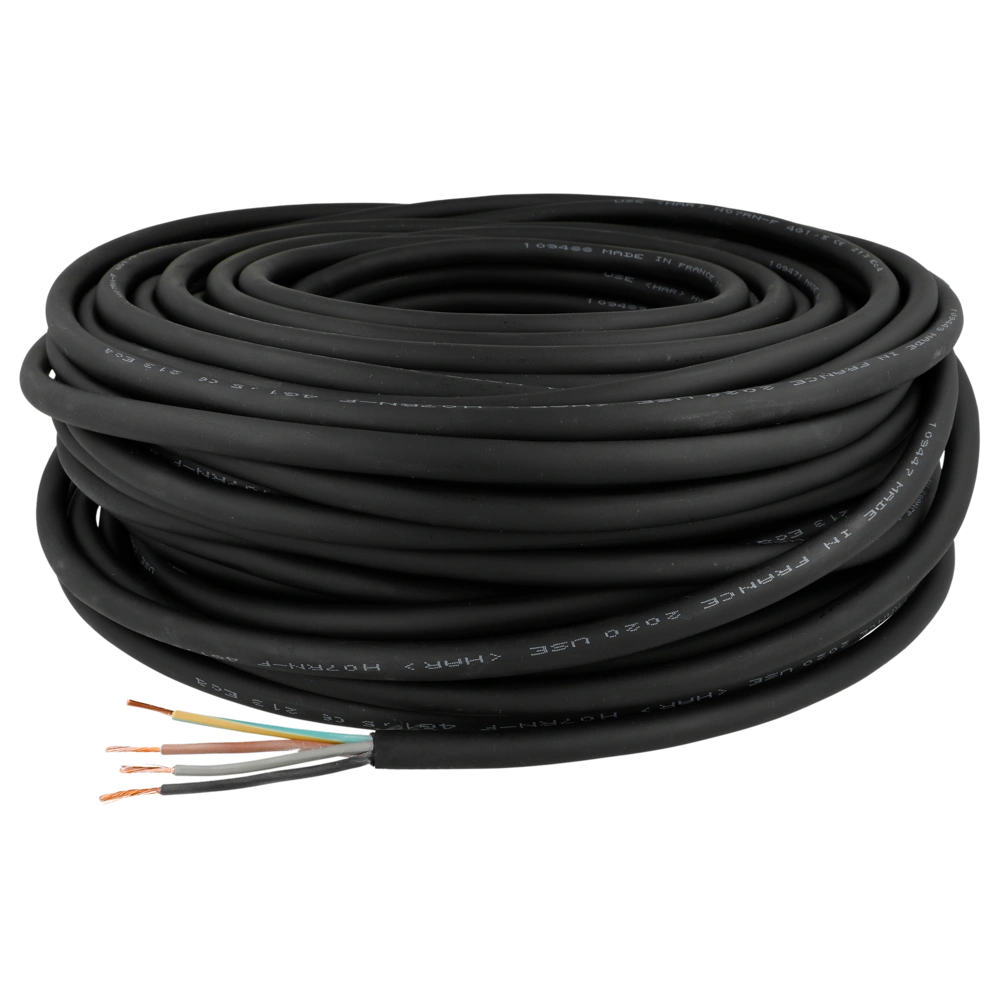

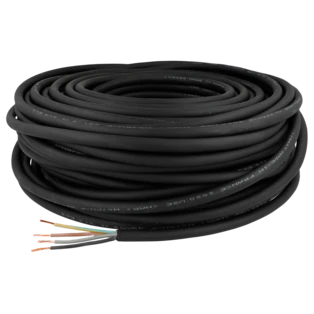

Rubber-sheathed cable for the connection of electrical appliances with medium mechanical stresses in dry, damp and wet rooms and outdoors. It is made up of finely stranded copper conductors, a rubber insulation and a neoprene sheath.
The rubber-sheathed cable has a core identification according to DIN VDE 0293, and it is flame-resistant.
These cables are allowed to be used with a protected, fixed installation in pipes or in appliances and also as rotor-connecting cable of motors each at a rated voltage of up to 1,000 V AC or up to 750 V DC against ground.
| OEG no. | 701000606 |
| PU | 50 m ring |
| Number of cores: | 4 |
| Wire cross-section [mm²]: | 4 |
| Wire identification: | H07RN-F 4G x 4 |
| Colour: |
 Black
|
| Standard: | EN 50525-2-21 |
| PU: | 285-525-2-21 |
| Copper content [kg/km]: | 154.0 |
| Rated voltage Uo/U [V]: | 450 / 750 |
| Operating temperature [°C]: | -30 - 60 |
| Test voltage [V]: | 2,500 |
| Weight [kg] | 12 |
| Notes |
CE
EAC
|
| Customs tariff number | 85444995 (EEC) |
pourquoi l'article est afficher a 84.86 (votre prix net) et une X dans le panier est afficher a 118,94??
C'est le surcoût de cuivre qui s'ajoute.
Bonjour, je désirerais savoir le diametre exterieur du cable massif en caoutchouc H07RN-F 4G4, merci
Bonjour,
Le diamètre extérieur est de 14,2 mm.
Cordialement,
Votre équipe OEG
You have to be logged in to ask a question
07/08/2016, 15:13:23 of: Mr Feld
gut
Eine sehr gute Schwere Gummischlauchleitung H07RN-F 4G4, 50 m, schwarz
