Rubber-sheathed cable for the connection of electrical appliances with medium mechanical stress in dry, damp and wet areas and outdoors. It is made up of finely stranded copper conductors, a rubber insulation and a neoprene sheath...
All product informationRelated products
CE
EAC

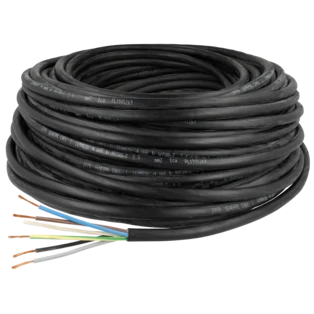

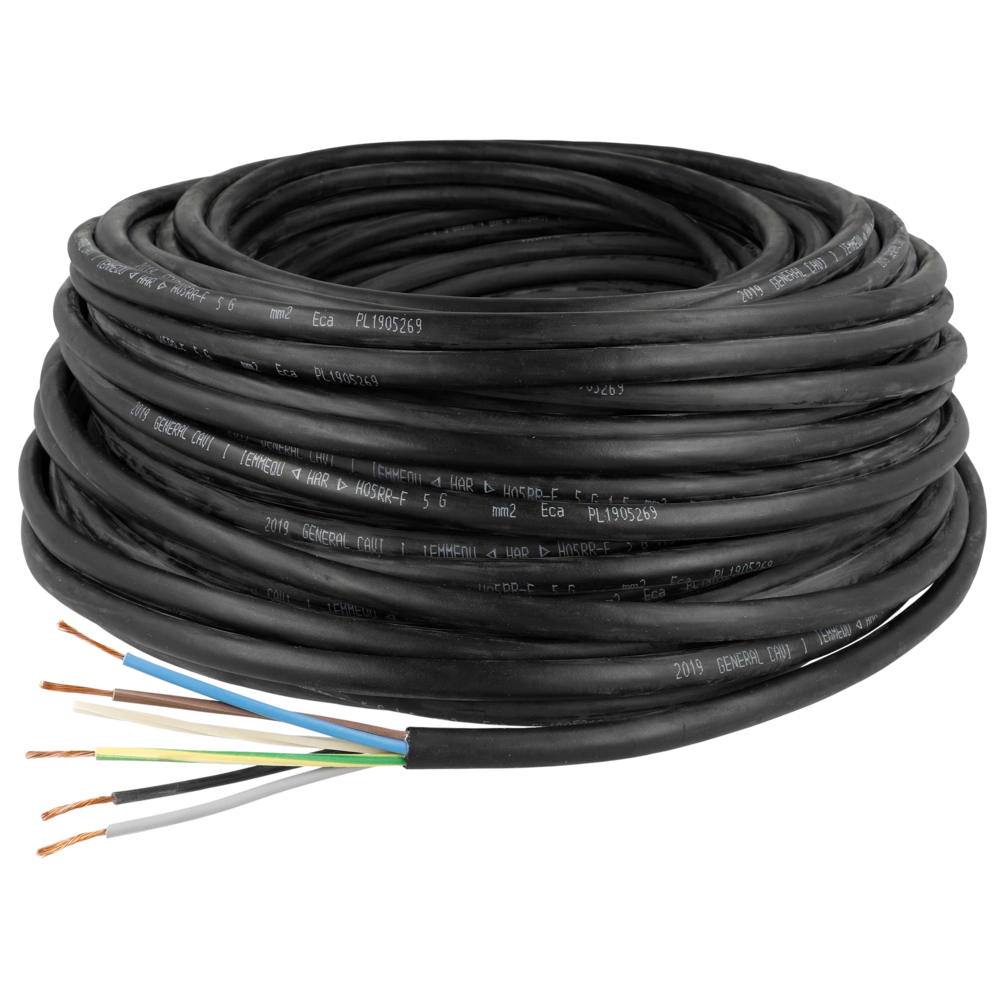

Rubber-sheathed cable for the connection of electrical appliances with medium mechanical stress in dry, damp and wet areas and outdoors. It is made up of finely stranded copper conductors, a rubber insulation and a neoprene sheath.
The rubber-sheathed cable has a core identification according to DIN VDE 0293, and it is flame-resistant.
These cables are allowed to be used in a protected, fixed installation of pipes or in equipment and also as rotor-connecting cable of motors each at a rated voltage of up to 1,000 V AC or up to 750 V DC against ground.
For more information see Downloads
| OEG no. | 701000612 |
| PU | 50 m ring |
| Number of cores: | 5 |
| Wire cross-section [mm²]: | 6 |
| Wire identification: | H07RN-F 5G x 6 |
| Colour: |
 Black
|
| Standard: | EN 50525-2-21 |
| PU: | 285-525-2-21 |
| Copper content [kg/km]: | 288.0 |
| Rated voltage Uo/U [V]: | 450 / 750 |
| Operating temperature [°C]: | -30 - 60 |
| Test voltage [V]: | 2,500 |
| Weight [kg] | 15 |
| Notes |
CE
EAC
|
| Customs tariff number | 85444995 (EEC) |
