Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.
The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks...
Accumulatori singoli A+
10 anni di garanzia
High Quality
Generazione d'acqua dolce in tubo corrugato in acciaio Inox secondo il principio di funzionamento dello scaldacqua
TÜV Rheinland
Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.

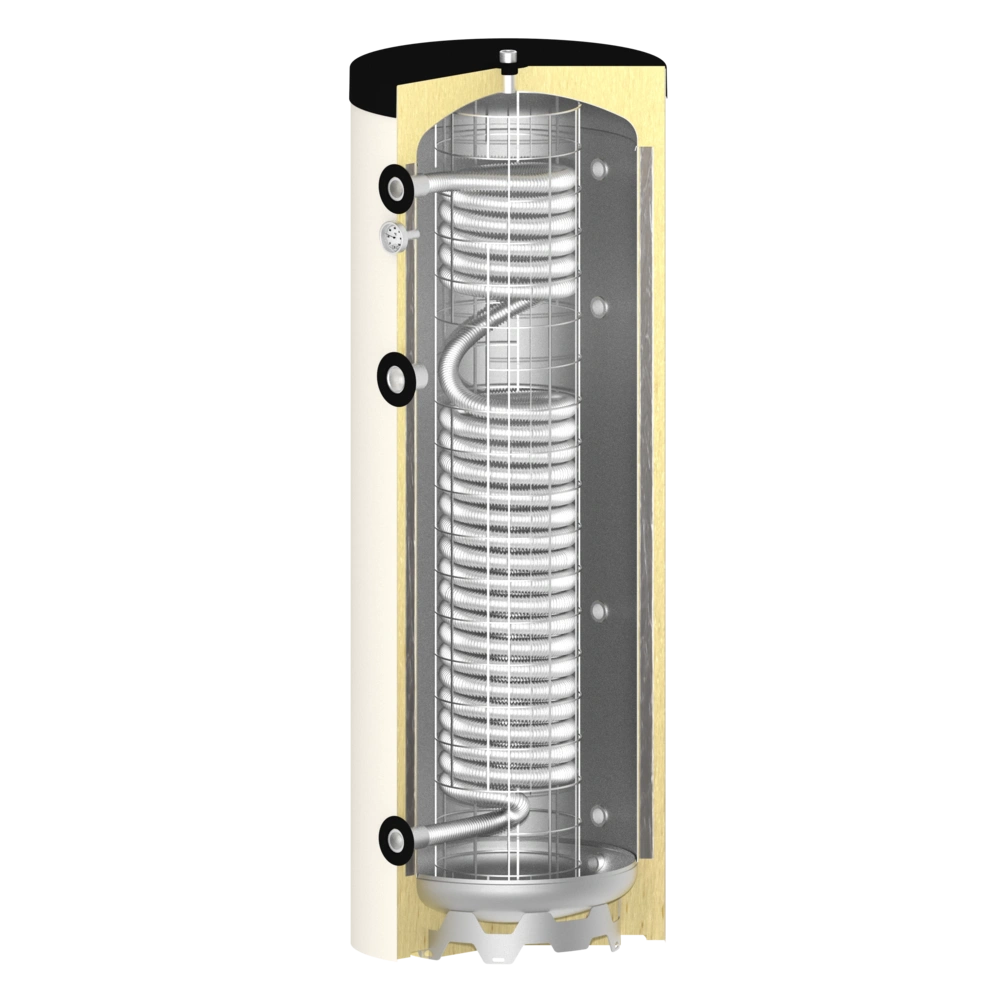

The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks. A built-in corrugated stainless steel pipe separates the drinking water from the heating water, while serving as a powerful heat exchanger at the same time. Thus, the advantages of a buffer tank are combined with those of a continuous flow water heater.
The heating water serves as actual heat storage while the drinking water flows through the corrugated stainless steel pipe only if required and, thus, a legionella-safe domestic water heating is ensured. You do not need a protection programme against legionella in the controller. At all times, the consumer is provided with hygienically clean, fresh water at the desired temperature.
Per ulteriori informazioni consultare Download
Codice OEG | 516008219 |
Scambiatoredicalore: | 0 |
Installation type: | Vertical storage tank |
Produttore | OEG |
Marchio | Pure+ |
Classe di efficienza energetica | A+ |
ErP-Label | |
Avvisi |
Accumulatori singoli A+ 10 anni di garanzia High Quality Generazione d'acqua dolce in tubo corrugato in acciaio Inox secondo il principio di funzionamento dello scaldacqua TÜV Rheinland |
Codice doganale | 84191900 |
Capacità nominale a norma EN 12897: | 300 |
Colore: | white |
Isolamento secondo la DIN 4102-1 con classe di protezione antincendio B2: | solid foamed insulation |
Peso [kg]: | 81 |
Altezza totale con isolamento [mm]: | 1750 |
Diametro con isolamento [mm]: | 610 |
Misura diagonale [mm]: | 1830 |
Classe di efficienza energetica conforme al regolamento UE numero 812/2013: | A+ |
Perdita termica secondo EN 12897 [W]: | 36 |
Perdite di calore in stand-by secondo la norma EN 12897 [kWh/24h]: | 0,864 |
Portata (45 °) [l]: | 175 |
Coefficiente di resa termica a norma DIN 4708: | 1,60 |
Volume effettivo conforme alla norma EN 12897 [l]: | 298 |
pmax Serbatoio [bar]: | 3 |
tmax Serbatoio [°C]: | 95 |
tmin Serbatoio [°C]: | 20 |
Scambiatore di calore per acqua potabile [m²]: | 4,40 |
Scambiatore di calore per acqua potabile volume [l]: | 19 |
pmax Scambiatore di calore per acqua potabile [bar]: | 6 |
tmax Scambiatore di calore per acqua potabile [°C]: | 95 |
Provvedimento di raccordi: | 180° |
Raccordo sonda [Ø mm / morsetto]: | 6 mm |
Attacchi per prelievo acqua calda/fredda: | Rp 1 1/4" |
Raccordo generatore di calore [filettatura]: | R 1" |
Raccordo resistenza elettrica [filettatura]: | Rp 1 1/2" |
Riscaldatore a vite con profondità massima a immersione [mm]: | 500 |
Goedemiddag, Heeft U voor ons het artikelnummer van de Vervanganode mbt deze boiler (art.nr. 516008219)
Artikel Accumulatore acqua fresca 300 litri betreft een verswaterboiler (hygieneboiler) en beschikt niet over een anode.
Het opslagvat is gevuld met verwarmingswater (in een gesloten systeem) het tapwater wordt via de RVS wisselaar volgens het doorstroomprincipe verwarmd.
