Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.
The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks...
Accumulatori singoli A+
10 anni di garanzia
High Quality
Generazione d'acqua dolce in tubo corrugato in acciaio Inox secondo il principio di funzionamento dello scaldacqua
TÜV Rheinland
Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.

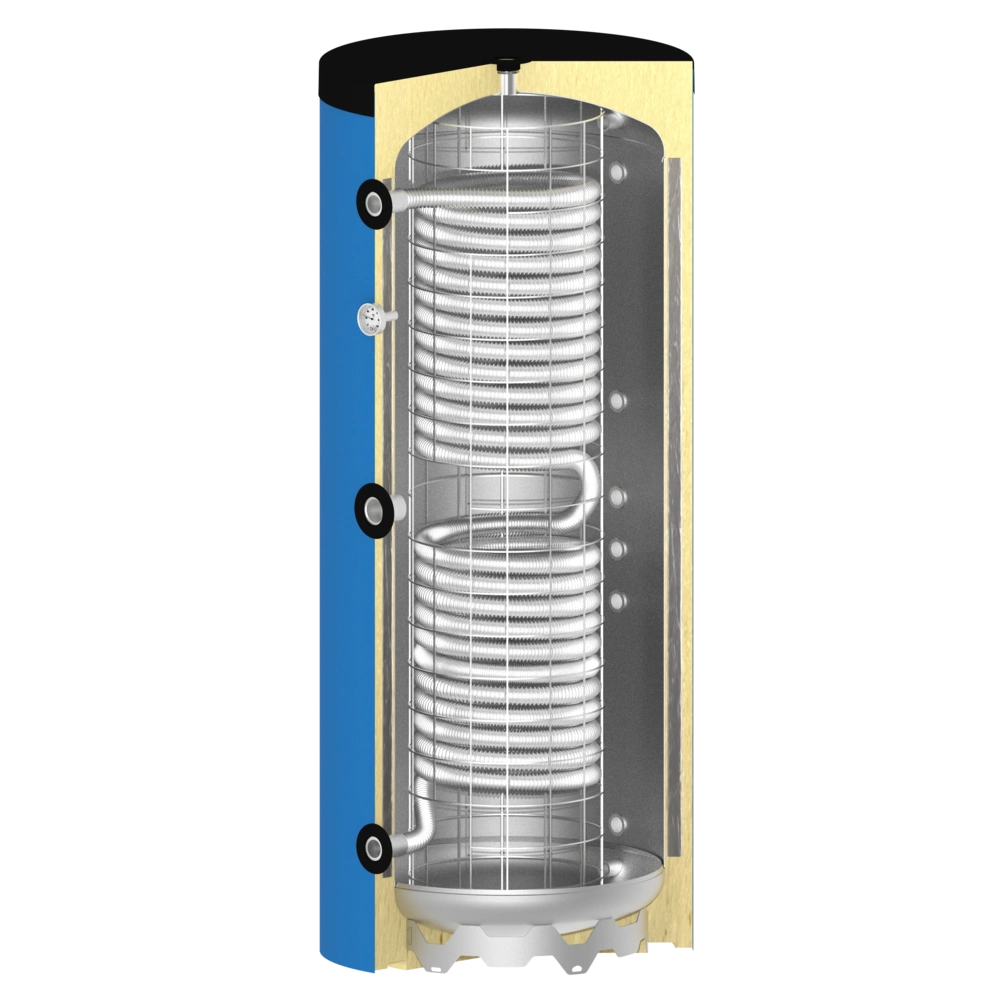

The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks. A built-in corrugated stainless steel pipe separates the drinking water from the heating water, while serving as a powerful heat exchanger at the same time. Thus, the advantages of a buffer tank are combined with those of a continuous flow water heater.
The heating water serves as actual heat storage while the drinking water flows through the corrugated stainless steel pipe only if required and, thus, a legionella-safe domestic water heating is ensured. You do not need a protection programme against legionella in the controller. At all times, the consumer is provided with hygienically clean, fresh water at the desired temperature.
Per ulteriori informazioni consultare Download
Codice OEG | 516008224 |
Scambiatoredicalore: | 0 |
Installation type: | Vertical storage tank |
Produttore | OEG |
Marchio | Pure+ |
Classe di efficienza energetica | A+ |
ErP-Label | |
Avvisi |
Accumulatori singoli A+ 10 anni di garanzia High Quality Generazione d'acqua dolce in tubo corrugato in acciaio Inox secondo il principio di funzionamento dello scaldacqua TÜV Rheinland |
Codice doganale | 84191900 |
Capacità nominale a norma EN 12897: | 400 |
Colore: | blue |
Isolamento secondo la DIN 4102-1 con classe di protezione antincendio B2: | solid foamed insulation |
Peso [kg]: | 103 |
Altezza totale con isolamento [mm]: | 1725 |
Diametro con isolamento [mm]: | 710 |
Misura diagonale [mm]: | 1865 |
Classe di efficienza energetica conforme al regolamento UE numero 812/2013: | A+ |
Perdita termica secondo EN 12897 [W]: | 40 |
Perdite di calore in stand-by secondo la norma EN 12897 [kWh/24h]: | 0,960 |
Portata (45 °) [l]: | 230 |
Coefficiente di resa termica a norma DIN 4708: | 2 |
Volume effettivo conforme alla norma EN 12897 [l]: | 417 |
pmax Serbatoio [bar]: | 3 |
tmax Serbatoio [°C]: | 95 |
tmin Serbatoio [°C]: | 20 |
Scambiatore di calore per acqua potabile [m²]: | 6 |
Scambiatore di calore per acqua potabile volume [l]: | 27 |
pmax Scambiatore di calore per acqua potabile [bar]: | 6 |
tmax Scambiatore di calore per acqua potabile [°C]: | 95 |
Provvedimento di raccordi: | 180° |
Raccordo sonda [Ø mm / morsetto]: | 6 mm |
Attacchi per prelievo acqua calda/fredda: | Rp 1 1/4" |
Raccordo generatore di calore [filettatura]: | R 1" |
Raccordo resistenza elettrica [filettatura]: | Rp 1 1/2" |
Riscaldatore a vite con profondità massima a immersione [mm]: | 600 |
