Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.
The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks...
Accumulatori singoli A+
La consegna tramite l'azienda spedizioni
10 anni di garanzia
High Quality
Generazione d'acqua dolce in tubo corrugato in acciaio Inox secondo il principio di funzionamento dello scaldacqua
TÜV Rheinland

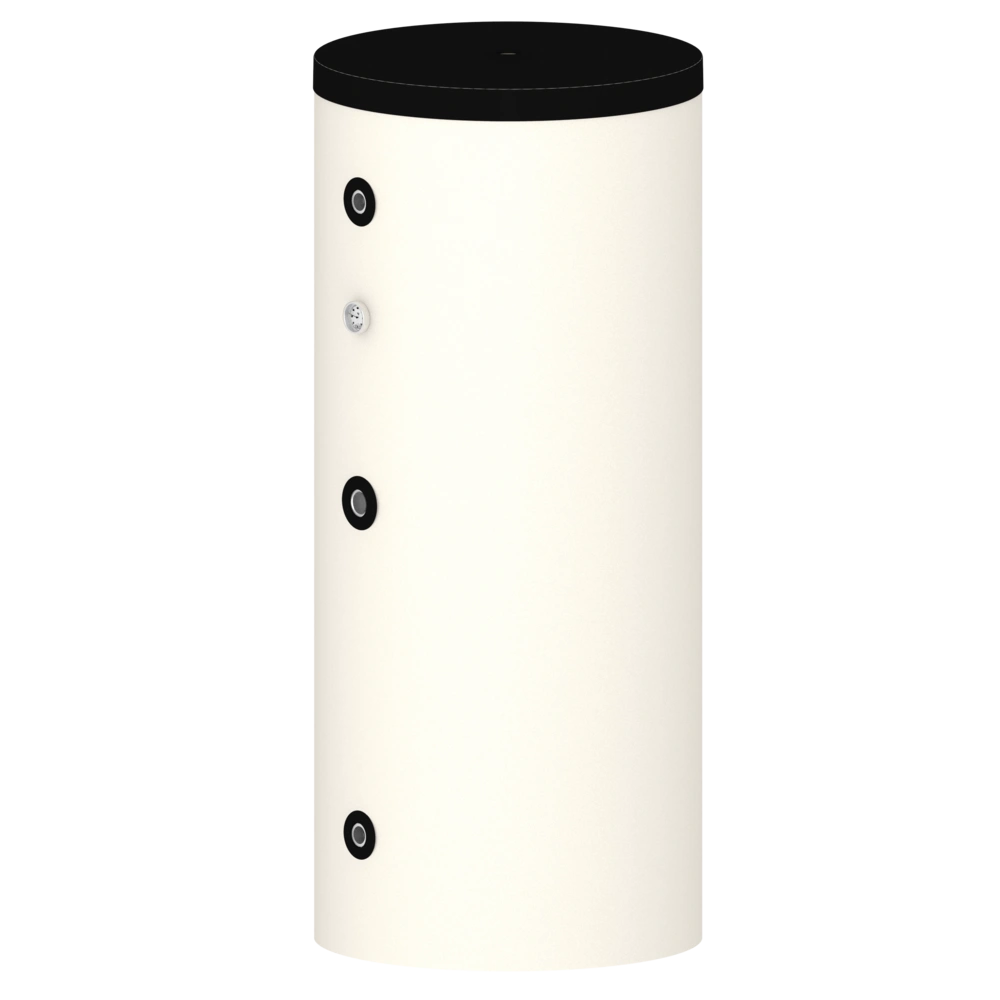

Fresh-water storage tank for highest demands on drinking water hygiene and energy efficiency.

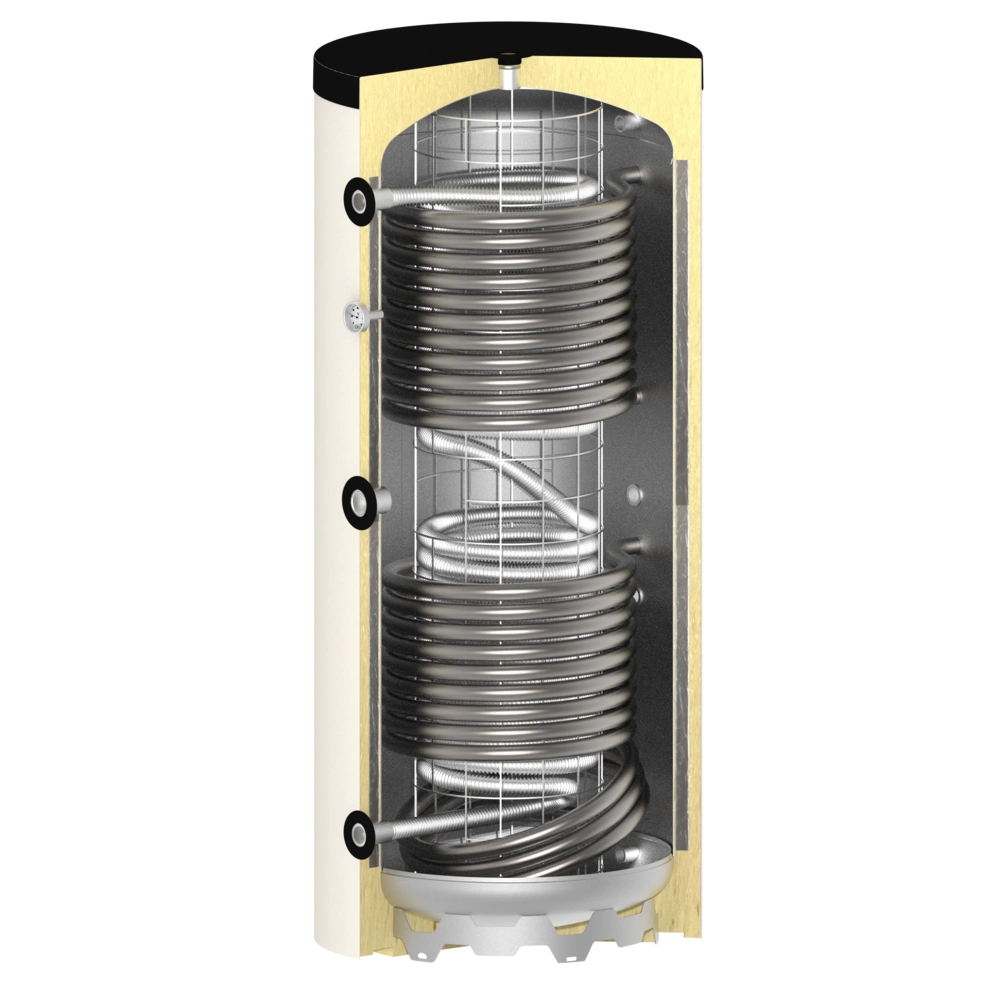

The structure of the storage tank is fundamentally different from usual large-volume domestic hot-water tanks. A built-in corrugated stainless steel pipe separates the drinking water from the heating water, while serving as a powerful heat exchanger at the same time. Thus, the advantages of a buffer tank are combined with those of a continuous flow water heater.
The heating water serves as actual heat storage while the drinking water flows through the corrugated stainless steel pipe only if required and, thus, a legionella-safe domestic water heating is ensured. You do not need a protection programme against legionella in the controller. At all times, the consumer is provided with hygienically clean, fresh water at the desired temperature.
Due to the two additional smooth-pipe heat exchangers, more heat generators can be integrated at any time and their energy can be fed into the fresh-water storage tank.
Per ulteriori informazioni consultare Download
Codice OEG | 516008120 |
Installation type: | Vertical storage tank |
Produttore | OEG |
Marchio | Pure+ |
Classe di efficienza energetica | A+ |
ErP-Label | |
Avvisi |
Accumulatori singoli A+ La consegna tramite l'azienda spedizioni 10 anni di garanzia High Quality Generazione d'acqua dolce in tubo corrugato in acciaio Inox secondo il principio di funzionamento dello scaldacqua TÜV Rheinland |
Codice doganale | 84191900 |
Capacità nominale a norma EN 12897: | 500 |
Colore: | white |
Isolamento secondo la DIN 4102-1 con classe di protezione antincendio B2: | solid foamed insulation |
Peso [kg]: | 168 |
Altezza totale con isolamento [mm]: | 1770 |
Diametro con isolamento [mm]: | 760 |
Misura diagonale [mm]: | 1925 |
Classe di efficienza energetica conforme al regolamento UE numero 812/2013: | A+ |
Perdita termica secondo EN 12897 [W]: | 43 |
Perdite di calore in stand-by secondo la norma EN 12897 [kWh/24h]: | 1,032 |
Portata (45 °) [l]: | 285 |
Coefficiente di resa termica a norma DIN 4708: | 3 |
Volume effettivo conforme alla norma EN 12897 [l]: | 507 |
pmax Serbatoio [bar]: | 3 |
tmax Serbatoio [°C]: | 95 |
tmin Serbatoio [°C]: | 20 |
Scambiatore di calore per acqua potabile [m²]: | 6 |
Scambiatore di calore per acqua potabile volume [l]: | 26,70 |
pmax Scambiatore di calore per acqua potabile [bar]: | 6 |
tmax Scambiatore di calore per acqua potabile [°C]: | 95 |
Scambiatore di calore a tubo liscio [quantità]: | 2 |
Scambiatore di calore a tubo liscio superficie inferiore [m²]: | 1,88 |
Scambiatore di calore a tubo liscio superficie superiore [m²]: | 1,74 |
Scambiatore di calore a tubo liscio volume in basso: | 12,40 |
Scambiatore di calore a tubo liscio volume in alto: | 11,40 |
pmax Scambiatore di calore a tubo liscio [bar]: | 10 |
tmax Scambiatore di calore a tubo liscio [°C]: | 130 |
Provvedimento di raccordi: | 180° |
Raccordo sonda [Ø mm / morsetto]: | 6 mm |
Attacchi per prelievo acqua calda/fredda: | Rp 1 1/4" |
Raccordo generatore di calore [filettatura]: | R 1" |
Raccordo scambiatore di calore [filettatura]: | Rp 1" |
Raccordo resistenza elettrica [filettatura]: | Rp 1 1/2" |
Riscaldatore a vite con profondità massima a immersione [mm]: | 600 |
Bonjour,
En principe, le ballon peut être relié à un système solaire et à un poêle à bois. L'eau sanitaire serait ensuite chauffée à l'aide de l'échangeur thermique à tubes ondulés en acier inoxydable.
Comme les poêles à bois ont souvent un rendement relativement élevé, la taille de l'échangeur thermique peut ne pas être suffisante. Il est donc préférable de raccorder le poêle à bois directement au réservoir de stockage. Dans ce cas, un ballon HSP-1 serait théoriquement suffisant. Mais la meilleure façon de savoir si l'échangeur thermique est suffisant ou quelle serait la meilleure solution est de demander à l'installateur du poêle à bois.
Cordialement,
Votre équipe OEG
Ja, in deze boiler heeft uw 500 liter opslag voor verwarming en een drinkwaterspiraal. Als deze boiler op 60° verwarmt word, heeft uw een tapcapaciteit van ca. 380 tot 400 liter warmwater (40 °C) per uur.
Goedemorgen, een verswaterboiler werkt als een doorstroomverwarmer. Het aantal liter per minuut welke deze aan warm water kan leveren is afhankelijk van verschillende factoren (voornamelijk delta t, temperatuur van de boiler). Meer informatie hierover vindt u hier: Accumulatore acqua fresca 500 litri con 2 scambiatori di calore a tubo liscio. Mocht nog meer informatie willen ontvangen, aarzel niet om contact met ons op te nemen. (+31)
