This buffer storage tank fulfills the highest demands on heat storage. Due to its highly efficient insulation, the heat retaining loss is reduced significantly in comparison to customary storage tanks...
All product informationStorage tanks A+
10-year warranty
High Quality
TÜV Rheinland
Delivery by forwarding agency

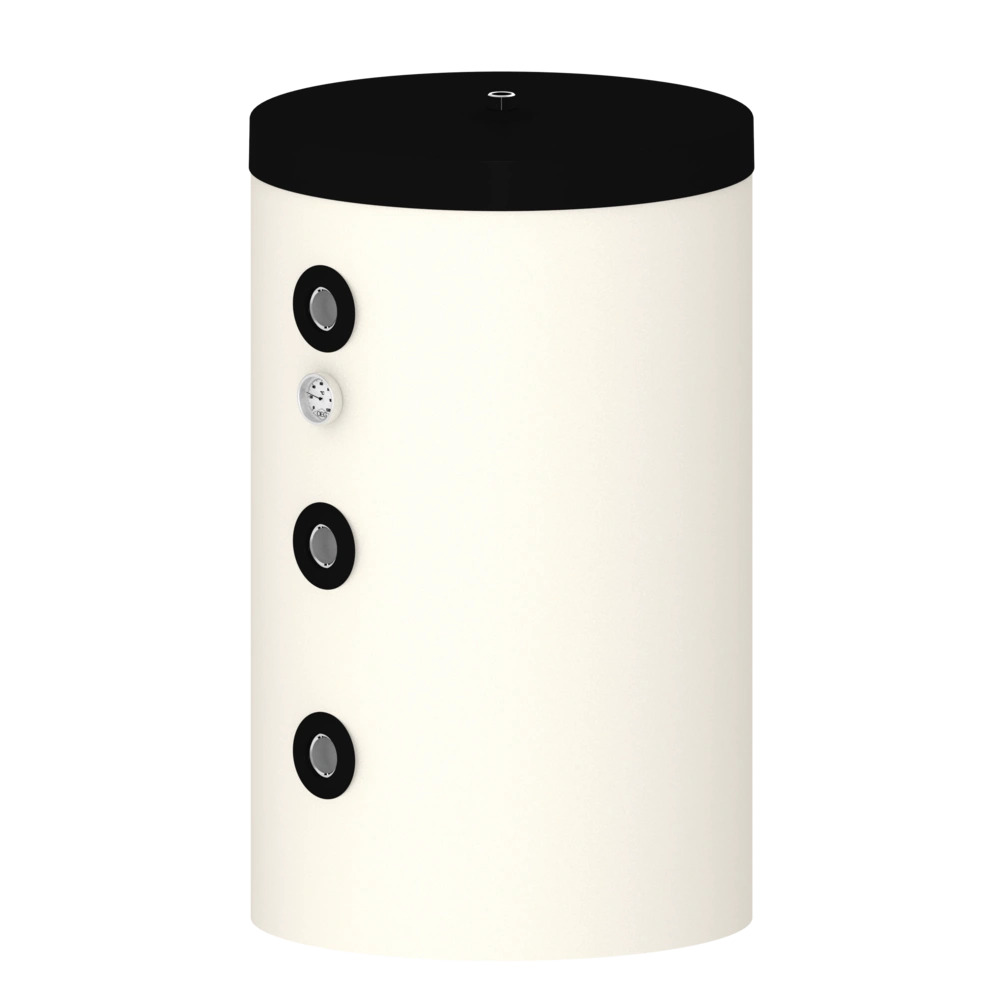

This buffer storage tank fulfills the highest demands on heat storage. Due to its highly efficient insulation, the heat retaining loss is reduced significantly in comparison to customary storage tanks. The buffer storage tank is responsible for balancing the difference between generated energy and consumed energy. Thus, the heat generators can be operated more independently from the consumption.
For more information see Downloads
Rated volume according to EN 12897: | 150 |
Colour: | white |
Insulation according to DIN 4102-1 Fire Protection Class B2: | solid foamed insulation |
Weight [kg]: | 48 |
Total height including insulation [mm]: | 1020 |
Diameter with insulation [mm]: | 610 |
Tilt height [mm]: | 1170 |
Energy efficiency class according to EU regulation no. 812/2013: | A+ |
Heat retaining loss according to EN 12897 [W]: | 28 |
Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 0,672 |
Real volume according to EN 12897 [l]: | 157 |
pmax Tank [bar]: | 3 |
tmax Tank [°C]: | 95 |
tmin Tank [°C]: | 20 |
Connection layout: | 180° |
Connection sensor [Ø mm / terminal]: | 6 mm |
Connection heat generator [thread]: | R 1" |
Connection heating element [thread]: | Rp 1 1/2" |
Max. immersion depth of screw-in heater [mm]: | 500 |
