Premium buffer storage tank for highest demands on heat storage and efficiency. Thanks to its highly efficient insulation, heat retention loss is significantly reduced compared to standard storage tanks...
All product information
High Quality
Delivery by forwarding agency
10-year warranty

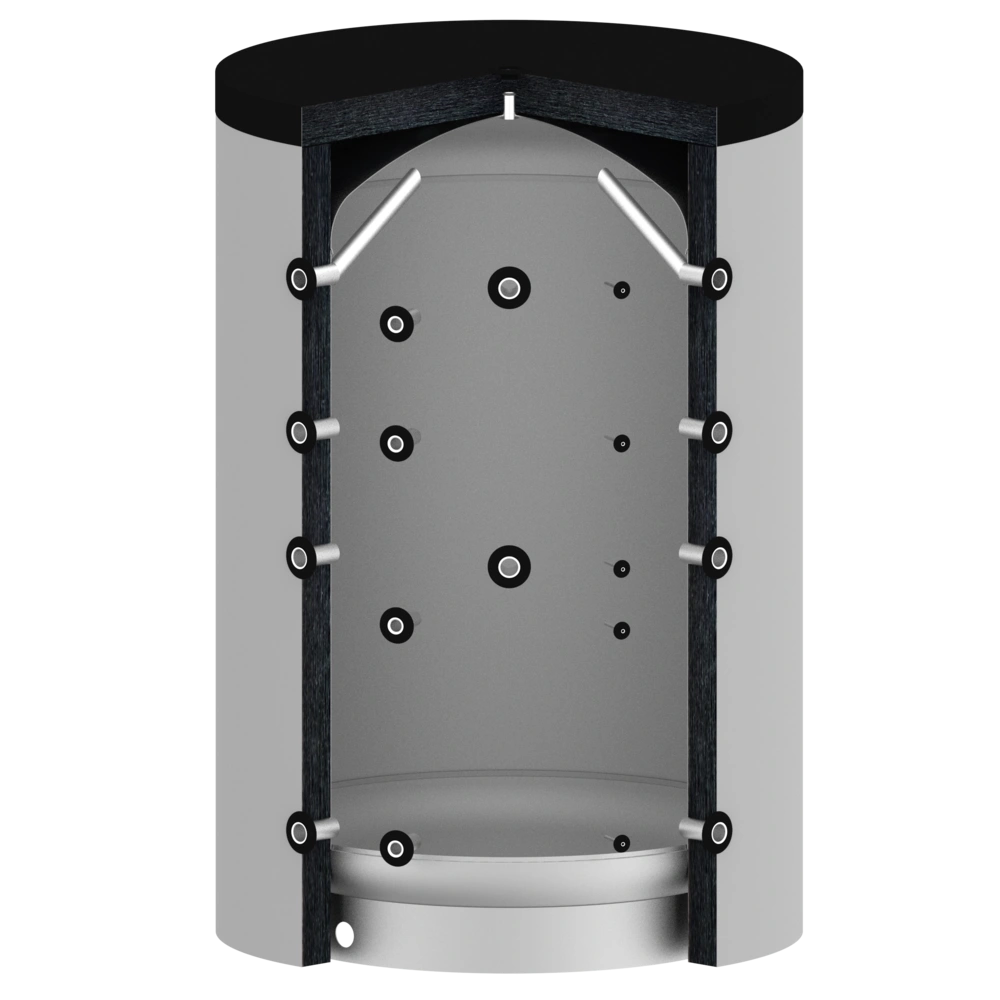

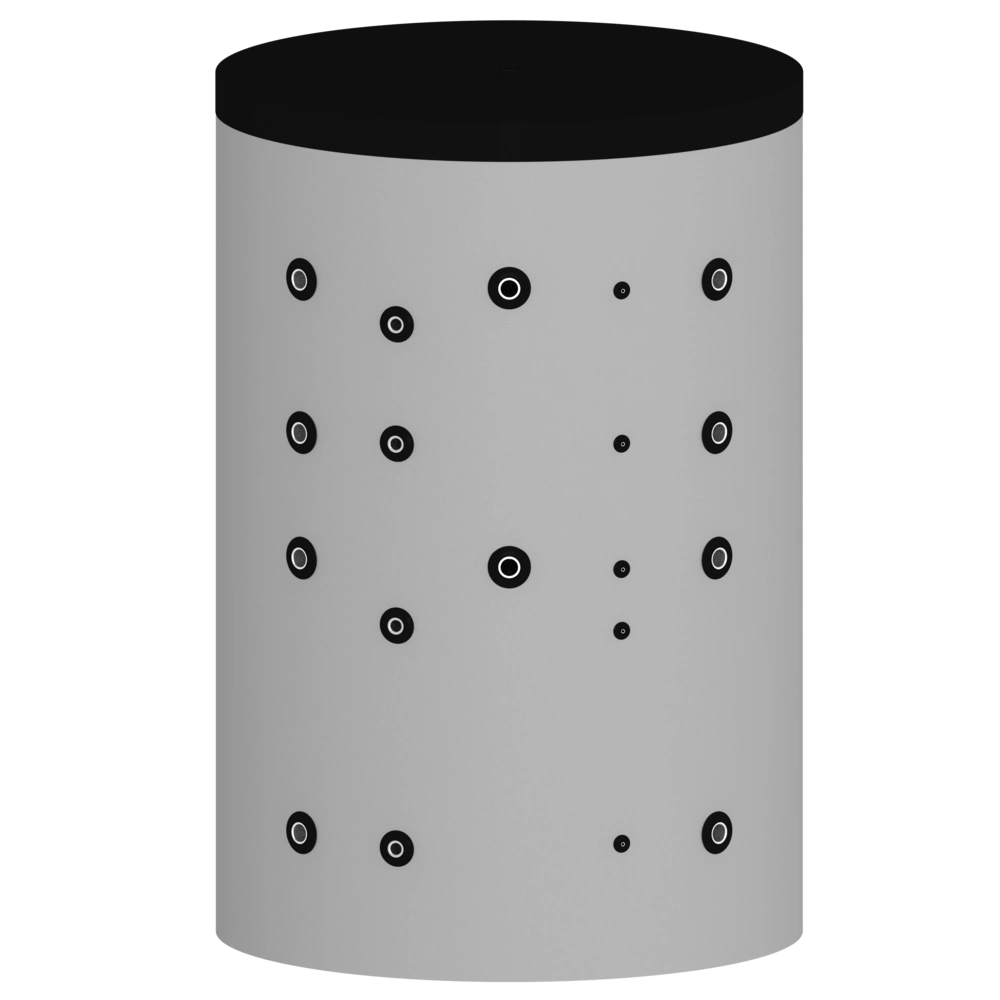

Premium buffer storage tank for highest demands on heat storage and efficiency. Thanks to its highly efficient insulation, heat retention loss is significantly reduced compared to standard storage tanks. The buffer storage tank is designed for balancing the difference between the heat generated and the heat consumed. In this way, the heat generators can be operated more independently of consumption.
For more information see Downloads
| OEG no. | 516005380 |
| Smooth-pipeheatexchanger: | 0 |
| Operating mode: | monovalent |
| Installation type: | Vertical storage tank |
| Manufacturer | OEG |
| Notes |
High Quality
Delivery by forwarding agency
10-year warranty
|
| Customs tariff number | 84191900 |
General
| Rated volume according to EN 12897: | 2250 |
| Colour: | silver |
| Insulation according to DIN 4102-1 Fire Protection Class B2: | removable PES fleece insulation 0.036 W/(mK) |
| Weight [kg]: | 275 |
| Total height including insulation [mm]: | 2165 |
| Diameter without insulation [mm]: | 1250 |
| Diameter with insulation [mm]: | 1450 |
| Tilt height [mm]: | 2240 |
| Real volume according to EN 12897 [l]: | 2261 |
| pmax Tank [bar]: | 3 |
| tmax Tank [°C]: | 95 |
| tmin Tank [°C]: | 20 |
| Connection layout: | 90° |
| Connection sensor [Ø mm / terminal]: | 6 mm |
| Connection heat generator [thread]: | Rp 1 1/2" |
| Connection heating element [thread]: | Rp 1 1/2" |
| Max. immersion depth of screw-in heater [mm]: | 1100 |
Question:
Bonjour Les documents ne mentionnent pas la classe énergétique et les pertes de chaleur pour les ballons au dela de 500 litres. ou trouver l'information SVP ?
Answer OEG:
Pour les ballons de plus de 500 litres, il n'y a plus de classe énergétique et les exigences en matière de déperdition thermique ne s'appliquent, selon la norme EN 12897, qu'aux ballons d'un volume allant jusqu'à 2.000 litres.
