Hot-water storage tanks for heating up domestic water by means of boilers and low-temperature systems of all manufacturers.
The inner surface of the storage tank is coated with a high-quality enamelling...
Accumulatori singoli A+
La consegna tramite l'azienda spedizioni
10 anni di garanzia
Adatto per installazioni d'acqua potabile
High Quality
TÜV Rheinland

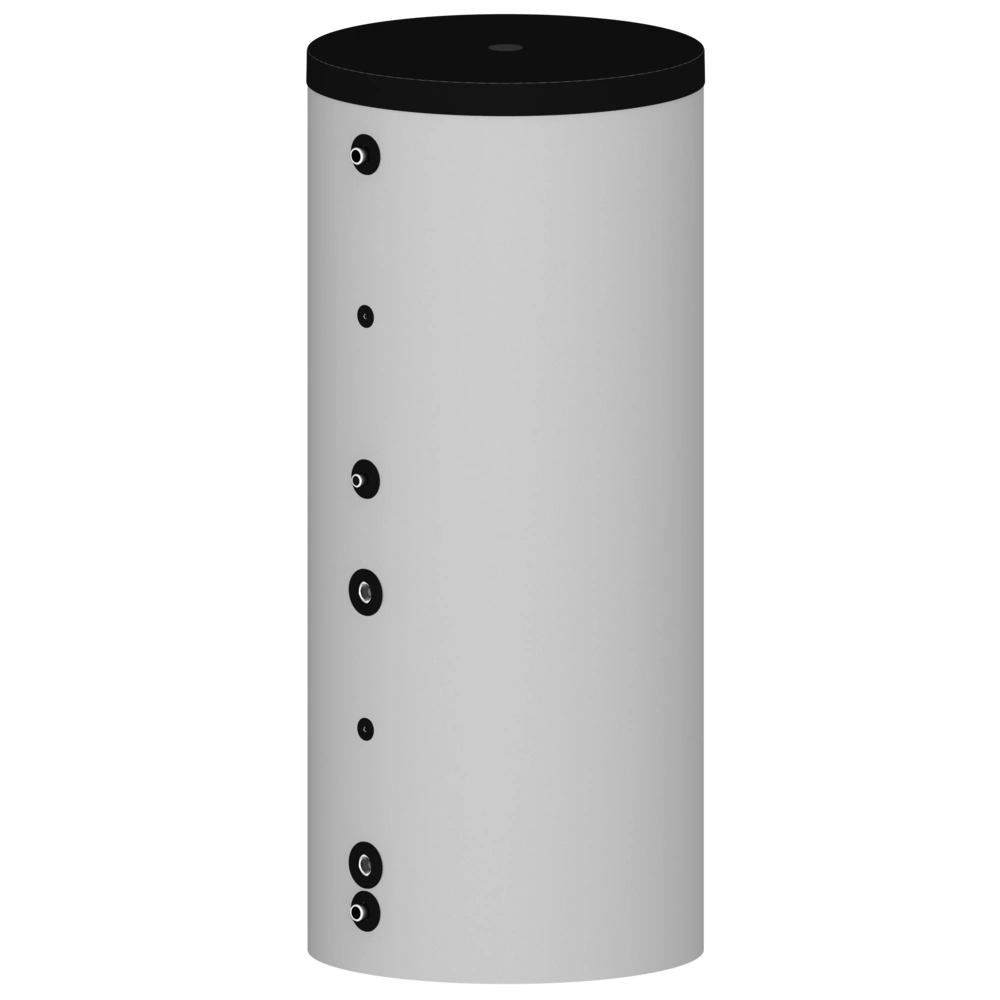

Hot-water storage tanks for heating up domestic water by means of boilers and low-temperature systems of all manufacturers.

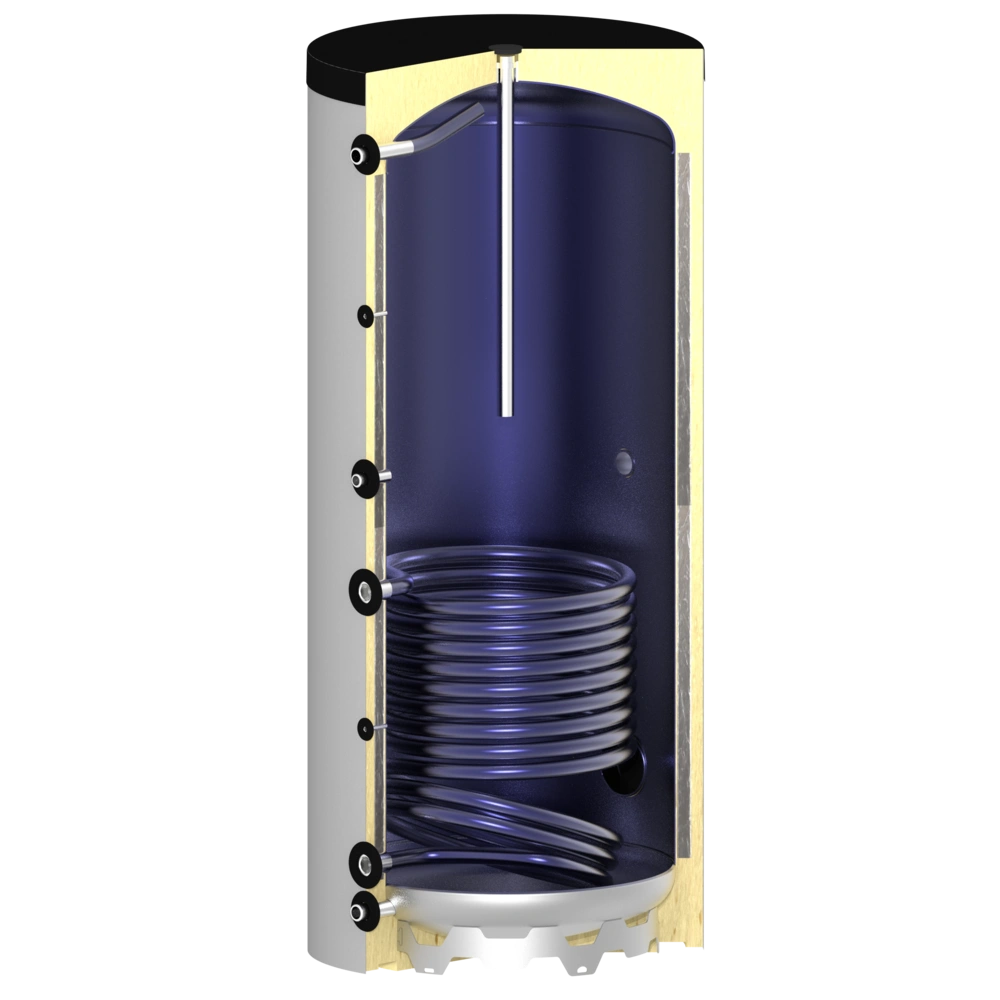

The inner surface of the storage tank is coated with a high-quality enamelling. The generously dimensioned heat exchanger surface that reaches down to the bottom ensures excellent heat transmission. A laterally positioned service hatch makes it possible to maintain and clean the storage tank conveniently, and it can be fitted with an electric heating element if required. The unrivalled OEG vacuum insulation of the storage tanks ensures there are significantly lower heat losses than the insulations of customary storage tanks.
Per ulteriori informazioni consultare Download
Capacità nominale a norma EN 12897: | 500 |
Colore: | silver |
Isolamento secondo la DIN 4102-1 con classe di protezione antincendio B2: | solid foamed insulation |
Peso [kg]: | 150 |
Altezza totale con isolamento [mm]: | 1770 |
Diametro con isolamento [mm]: | 760 |
Misura diagonale [mm]: | 1915 |
Classe di efficienza energetica conforme al regolamento UE numero 812/2013: | A+ |
Perdita termica secondo EN 12897 [W]: | 43 |
Perdite di calore in stand-by secondo la norma EN 12897 [kWh/24h]: | 1,032 |
Portata (45 °) [l]: | 785 |
Coefficiente di resa termica a norma DIN 4708: | 19 |
Volume effettivo conforme alla norma EN 12897 [l]: | 507 |
pmax Serbatoio [bar]: | 10 |
tmax Serbatoio [°C]: | 95 |
tmin Serbatoio [°C]: | 20 |
Scambiatore di calore a tubo liscio [quantità]: | 1 |
Scambiatore di calore a tubo liscio superficie inferiore [m²]: | 1,88 |
Scambiatore di calore a tubo liscio volume in basso: | 12 |
pmax Scambiatore di calore a tubo liscio [bar]: | 10 |
tmax Scambiatore di calore a tubo liscio [°C]: | 130 |
Provvedimento di raccordi: | 180° |
Raccordo sonda [Ø mm / morsetto]: | 6 mm |
Attacchi per prelievo acqua calda/fredda: | R 1" |
Raccordo scambiatore di calore [filettatura]: | Rp 1" |
Raccordo circolazione: | R 3/4" |
Raccordo resistenza elettrica [filettatura]: | Rp 1 1/2" |
Flangia di revisione (LK 150): | 115 / 180 |
Riscaldatore flangia di profondità massima a immersione [mm]: | 540 |
Riscaldatore a vite con profondità massima a immersione [mm]: | 600 |
Is for storage tank 516005206 insulation made like removable, with insulation with segments or this is not removable?
Hello,
the insulation is not removable in this accumulator.
With kind regards
E.e.a. is afhankelijk van het vermogen.
OEG heeft een speciale warmtepompboiler (Accumulatore pompe di calore 500 l 2 scambiatori di calore a tubo liscio)
Eventueel is het ook mogelijk om een tapwaterboiler te gebruiken met 2 buiswisselaars en deze door te lussen om daarmee een groter warmtewisselaar oppervlak te creeeren. (Accumulatore solare 500 l 2 scambiatori di calore a tubo liscio)
Bonjour, vous donnez une côte de basculement de 1910mm mais qu'en est-il de la distance au plafond nécessaire pour changer l'anode? Il me semble qu'elle est assez longue et il faut plus que ça pour la sortir. Une personne a reçu le ballon sans joint de trappe, elle n'est pas montée par défaut à la livraison? (Je n'ai pas de résistance électrique à monter). Cordialement
Bonjour,
L'anode n'est jamais incluse dans la mesure de l'inclinaison....
Le ballon a deux anodes, sur le dessus Anodo di magnesio 700 x Ø 33 mm con filettatura 1 1/4'' (1 1/4" 700mm), à remplacer si nécessaire par une anode enchaînée ou une anode à courant imposé s'il y a des problèmes d'espace. Une anode n° Anodo al magnesio per montaggio isola. 500 x Ø 33 mm M8 x 30 (M8, 500 mm) se trouve dans le couvercle de la trappe de visite.
Le joint de couvercle Guarnizione flangia per coperchi caldaie Ø 175 x 115 x 3 mm s'adapte, que nous n'avons pas seulement utilisé pour l'application d'une résistance électrique. Il doit toujours être installé, sinon le ballon ne serait jamais étanche.
Cordialement,
Votre équipe OEG
Bonjour,
Oui, nous pouvons fabriquer un tel ballon sur mesure.
Nous vous enverrons le formulaire à remplir par mail.
Cordialement,
Votre équipe OEG
Bonjour je vient de vous acheter un preparateur d'eau potable 516005206 il ma etais livrer sans joint de la trape du bas pouvez vous me donner le code car le ballon n'est pas etanche merci
envoyé par mail
